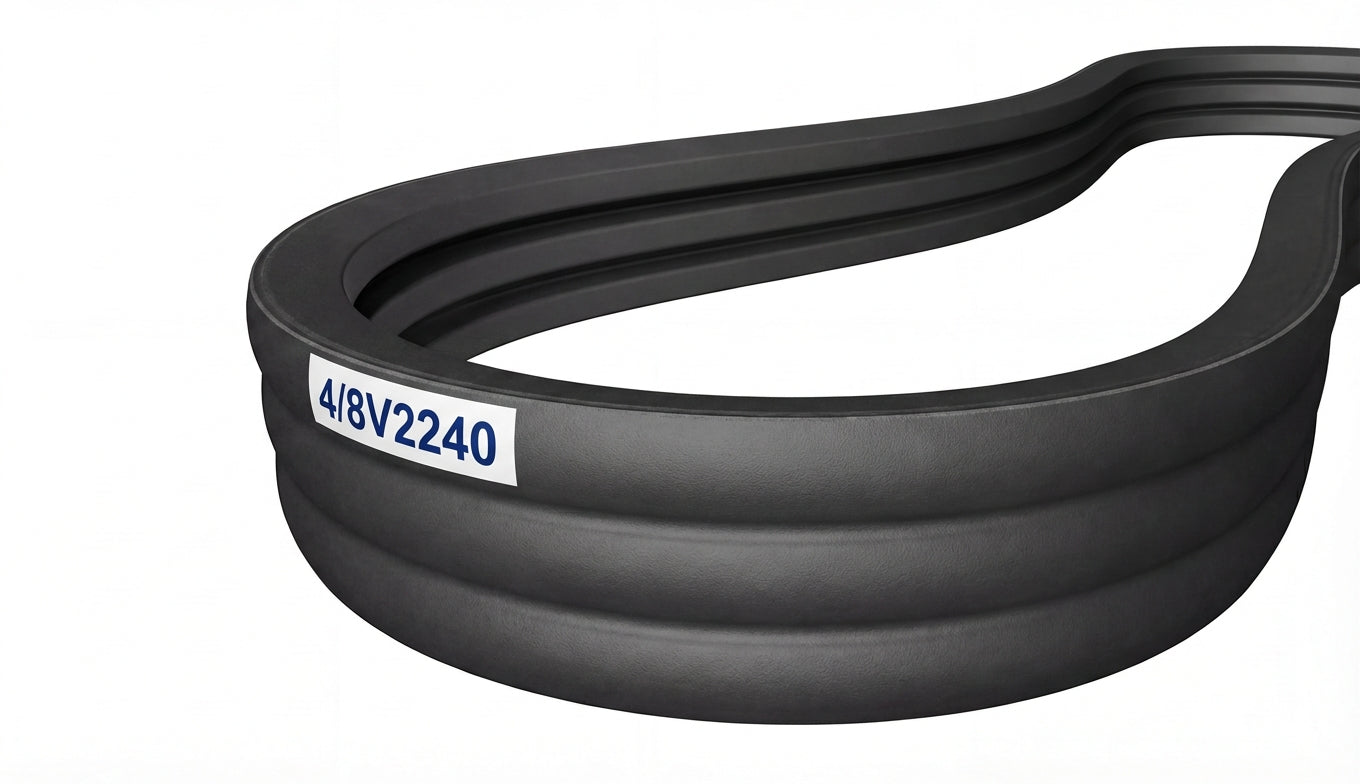

4/8V2240

Top Width: 4.09" (103.89mm)
Outside Length: 225" (5715mm)
Inside Length: 222.5" (5651.5mm)
Min Pulley Diameter: 12.5"
Configuration: 4-Band Set

The 4/8V2240 is a factory-joined 4-band 8V banded belt assembly measuring 4.09" wide x 225" long, featuring oil and heat resistant rubber construction.

SKU: 1224976

$480.49

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/8V2240
Top Width	4.09 in / 103.89 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	222.5 in / 5651.5 mm
Outside Length	225.0 in / 5715.0 mm
Effective Length	224.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	4
