3/8V5600

Top Width: 3.06" (77.72mm)
Outside Length: 561" (14249.4mm)
Inside Length: 558.5" (14185.9mm)
Min Pulley Diameter: 12.5"
Configuration: 3-Band Set

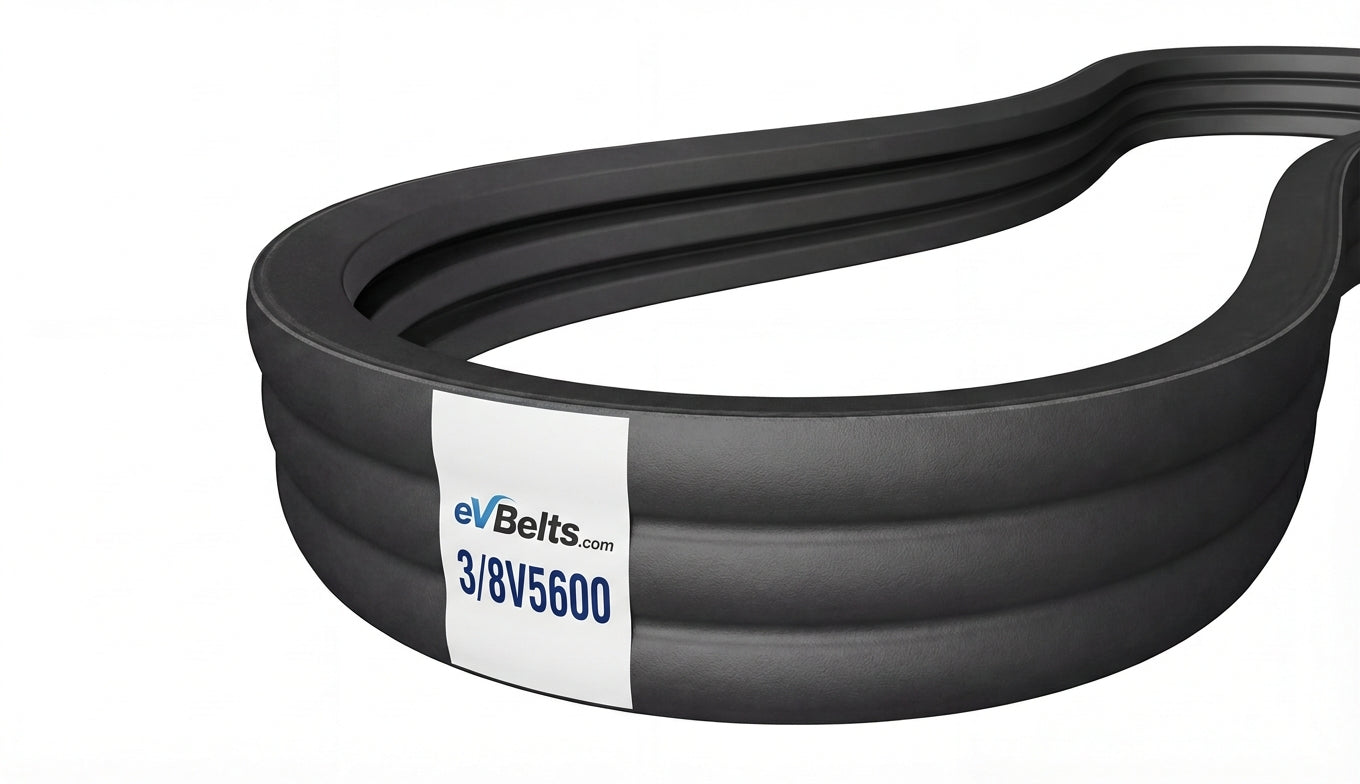

The 3/8V5600 is a factory-joined 3-band 8V banded belt assembly measuring 3.06" wide x 561" long, featuring oil and heat resistant rubber construction.

SKU: 1224960

$1,138.27

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/8V5600
Top Width	3.06 in / 77.72 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	558.5 in / 14185.9 mm
Outside Length	561.0 in / 14249.4 mm
Effective Length	560.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	3
