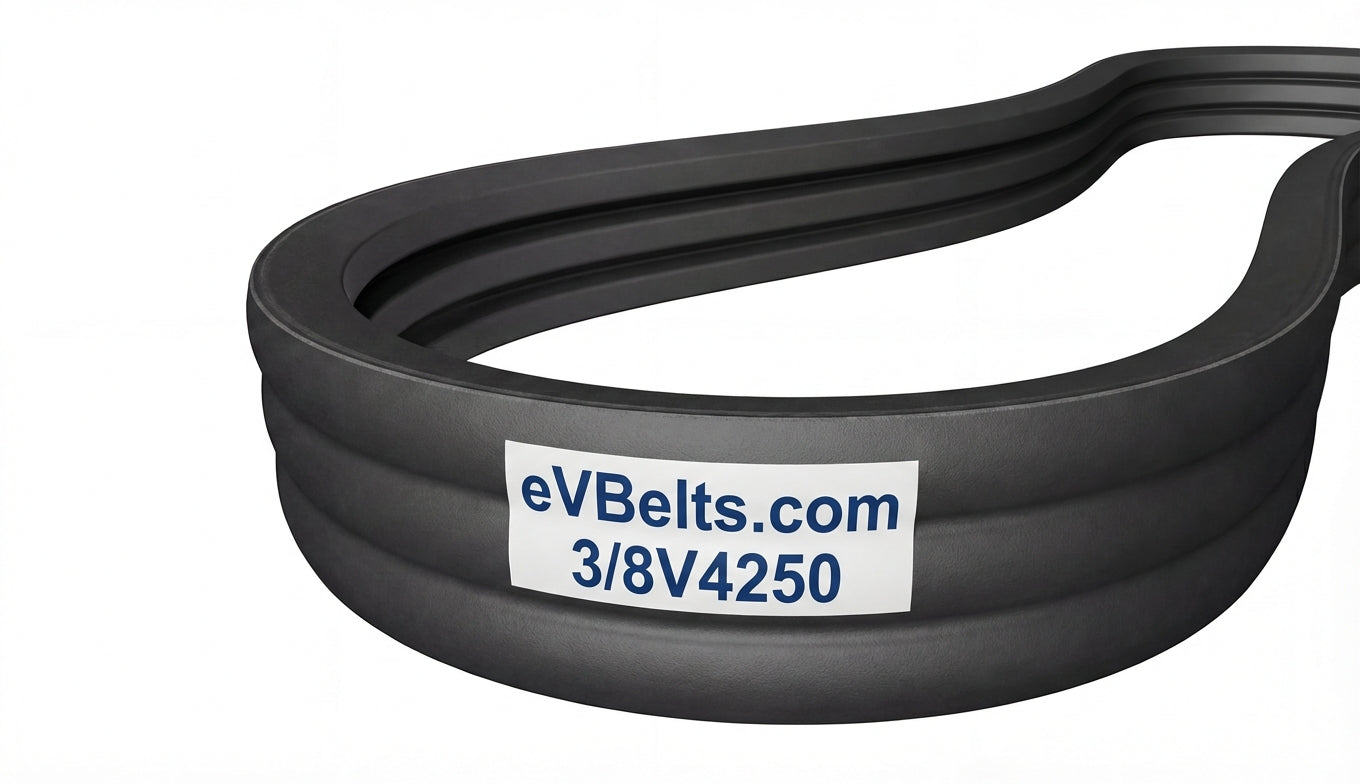

3/8V4250
The 3/8V4250 is a factory-joined 3-band 8V banded belt assembly measuring 3.06" wide x 426" long, featuring oil and heat resistant rubber construction.
SKU: 1224956
$825.30
82530
Only 2 Left!
Estimated delivery between June 22 and June 24.
Technical Specifications
| Part Number | 3/8V4250 |
| Top Width | 3.06 in / 77.72 mm |
| Belt Depth | 0.875 in / 22.22 mm |
| Inside Length | 423.5 in / 10756.9 mm |
| Outside Length | 426.0 in / 10820.4 mm |
| Effective Length | 425.0 in |
| Min Sheave Diameter | 12.5 in / 317.5 mm |
| Ribs | 3 |
3/8V4250
$825.30
82530
$825.30
82530
