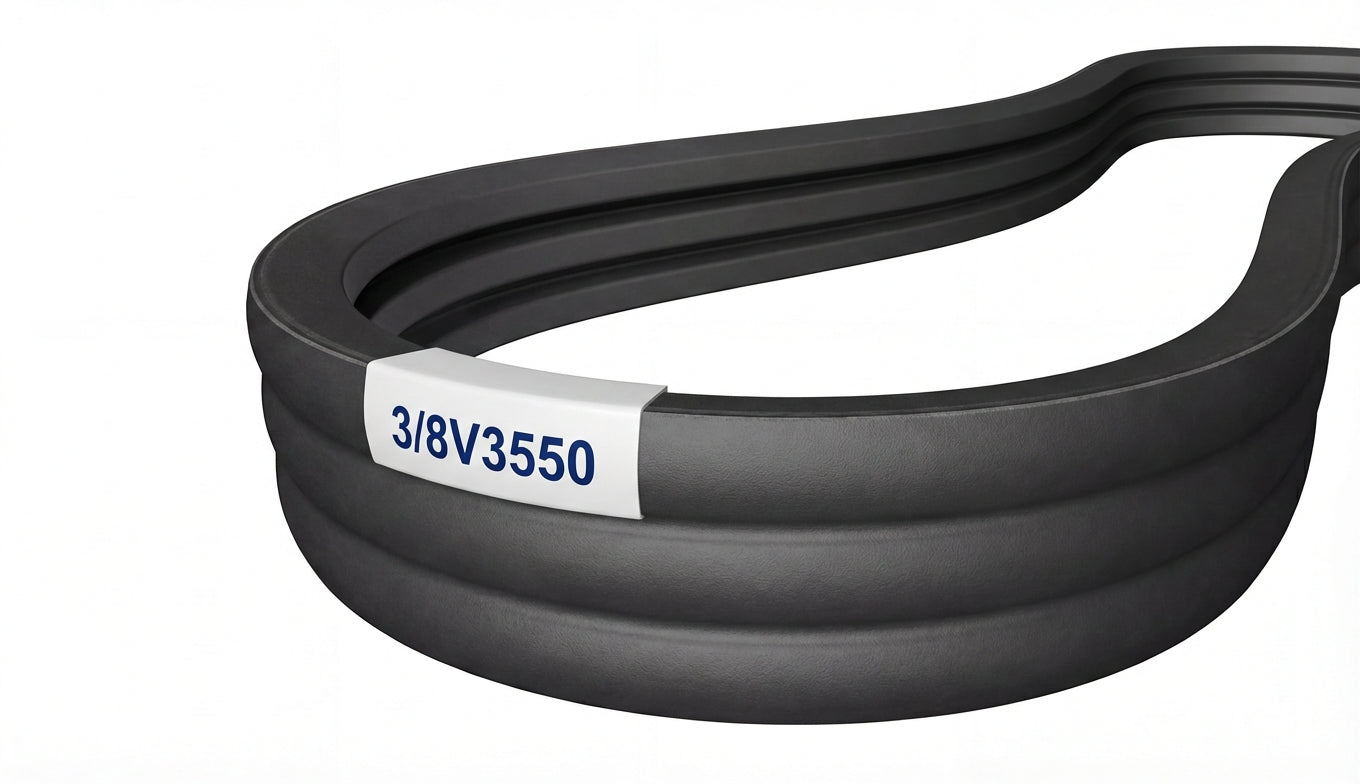

3/8V3550

Top Width: 3.06" (77.72mm)
Outside Length: 356" (9042.4mm)
Inside Length: 353.5" (8978.9mm)
Min Pulley Diameter: 12.5"
Configuration: 3-Band Set

The 3/8V3550 is a factory-joined 3-band 8V banded belt assembly measuring 3.06" wide x 356" long, featuring oil and heat resistant rubber construction.

SKU: 1224953

$548.47

72 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/8V3550
Top Width	3.06 in / 77.72 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	353.5 in / 8978.9 mm
Outside Length	356.0 in / 9042.4 mm
Effective Length	355.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	3
