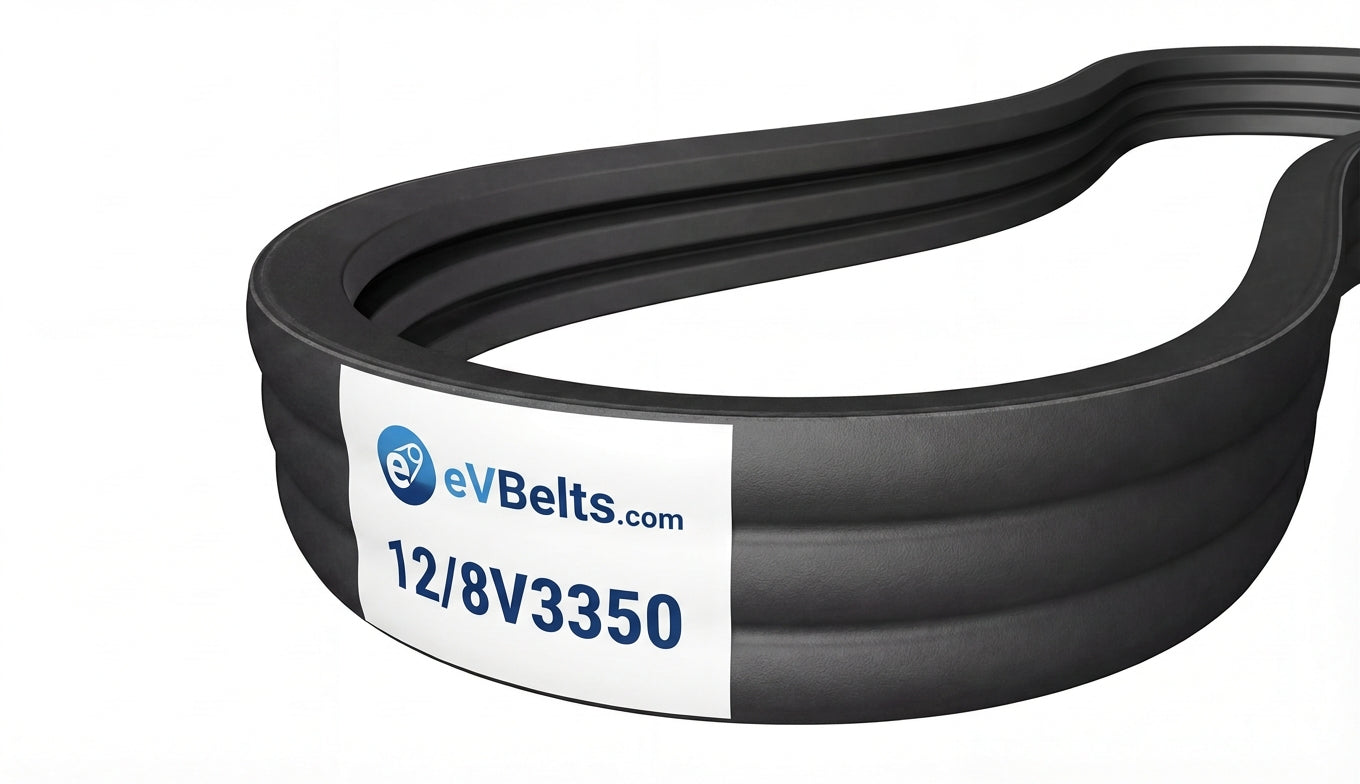

12/8V3350

Top Width: 12.33" (313.18mm)
Outside Length: 336" (8534.4mm)
Inside Length: 333.5" (8470.9mm)
Min Pulley Diameter: 12.5"
Configuration: 12-Band Set

The 12/8V3350 is a factory-joined 12-band 8V banded belt assembly measuring 12.33" wide x 336" long, featuring oil and heat resistant rubber construction.

SKU: 1224890

$2,355.34

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/8V3350
Top Width	12.33 in / 313.18 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	333.5 in / 8470.9 mm
Outside Length	336.0 in / 8534.4 mm
Effective Length	335.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	12
