12/8V1800

Top Width: 12.33" (313.18mm)
Outside Length: 181" (4597.4mm)
Inside Length: 178.5" (4533.9mm)
Min Pulley Diameter: 12.5"
Configuration: 12-Band Set

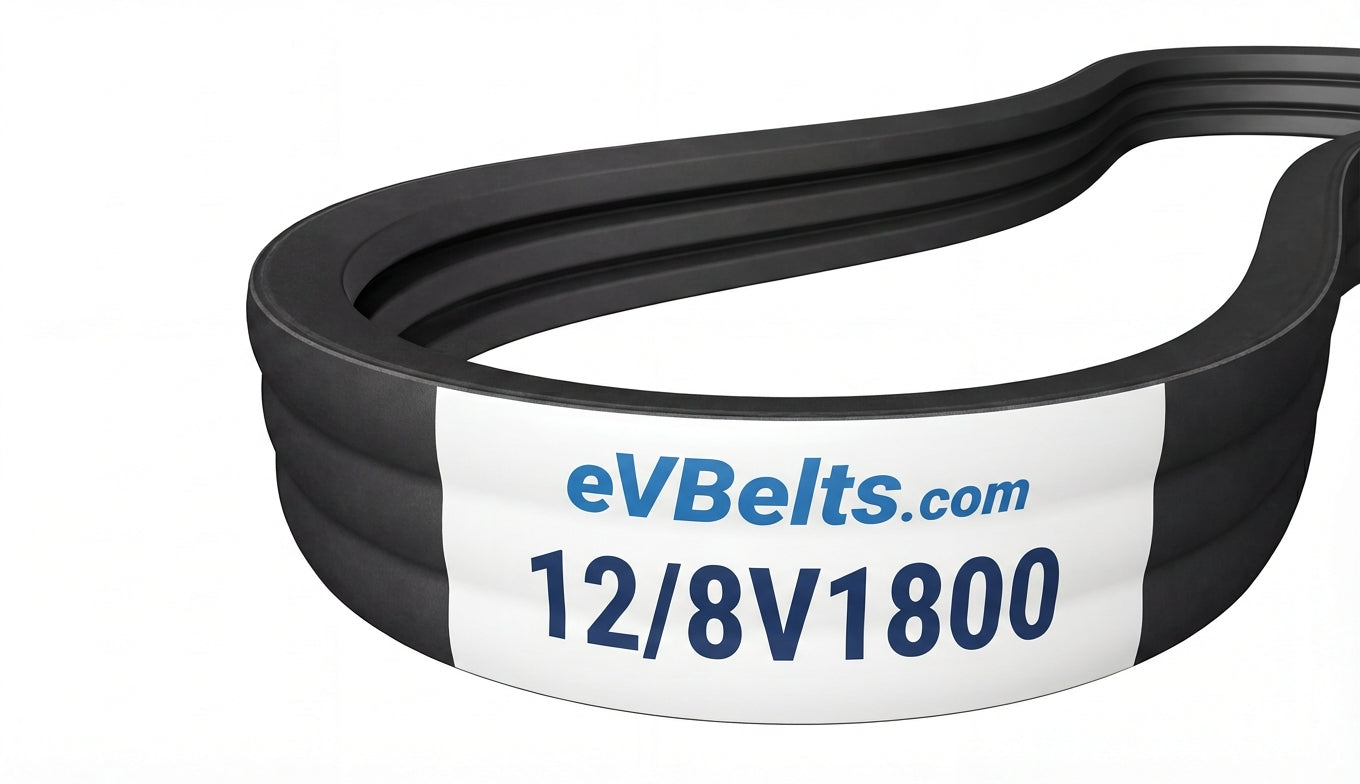

The 12/8V1800 is a factory-joined 12-band 8V banded belt assembly measuring 12.33" wide x 181" long, featuring oil and heat resistant rubber construction.

SKU: 1224879

$1,573.38

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/8V1800
Top Width	12.33 in / 313.18 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	178.5 in / 4533.9 mm
Outside Length	181.0 in / 4597.4 mm
Effective Length	180.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	12
