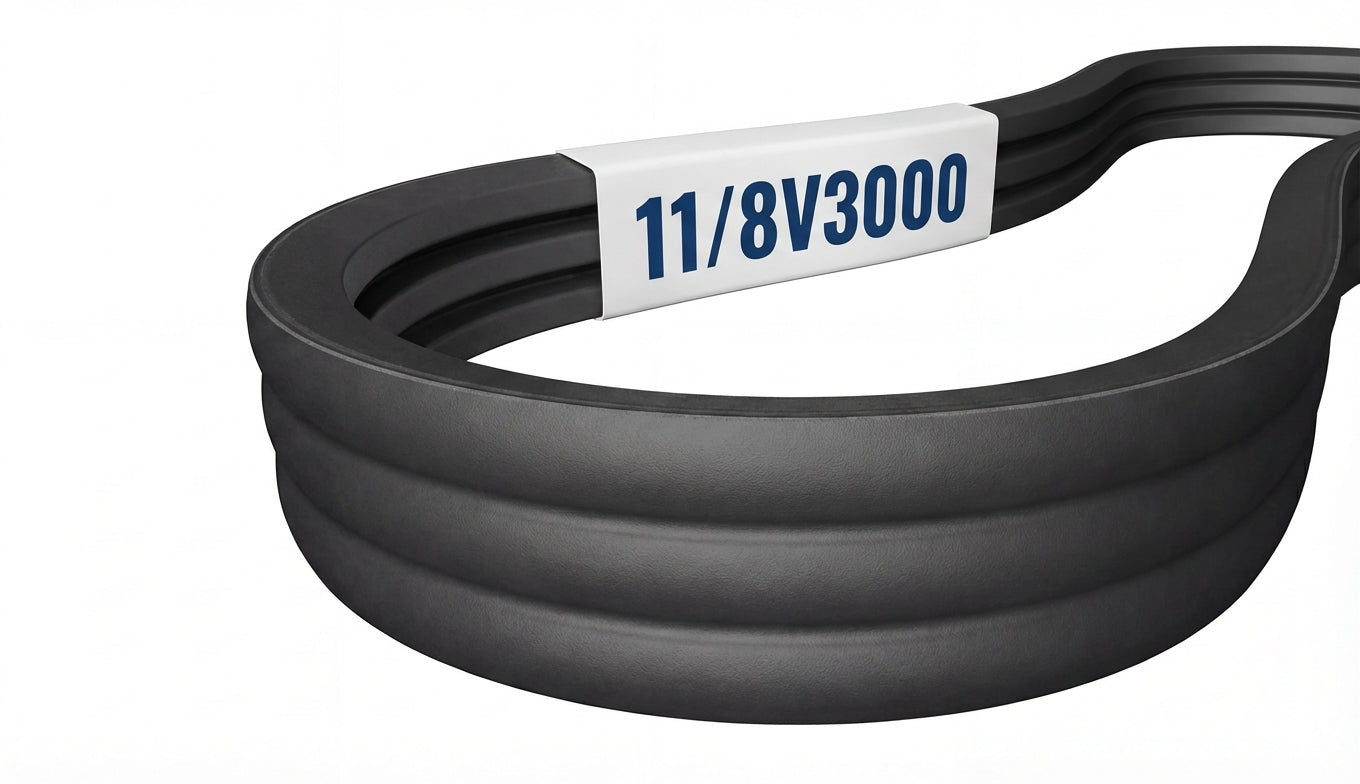

11/8V3000

Top Width: 11.3" (287.02mm)
Outside Length: 301" (7645.4mm)
Inside Length: 298.5" (7581.9mm)
Min Pulley Diameter: 12.5"
Configuration: 11-Band Set

The 11/8V3000 is a factory-joined 11-band 8V banded belt assembly measuring 11.3" wide x 301" long, featuring oil and heat resistant rubber construction.

SKU: 1224857

$2,774.83

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/8V3000
Top Width	11.3 in / 287.02 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	298.5 in / 7581.9 mm
Outside Length	301.0 in / 7645.4 mm
Effective Length	300.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	11
