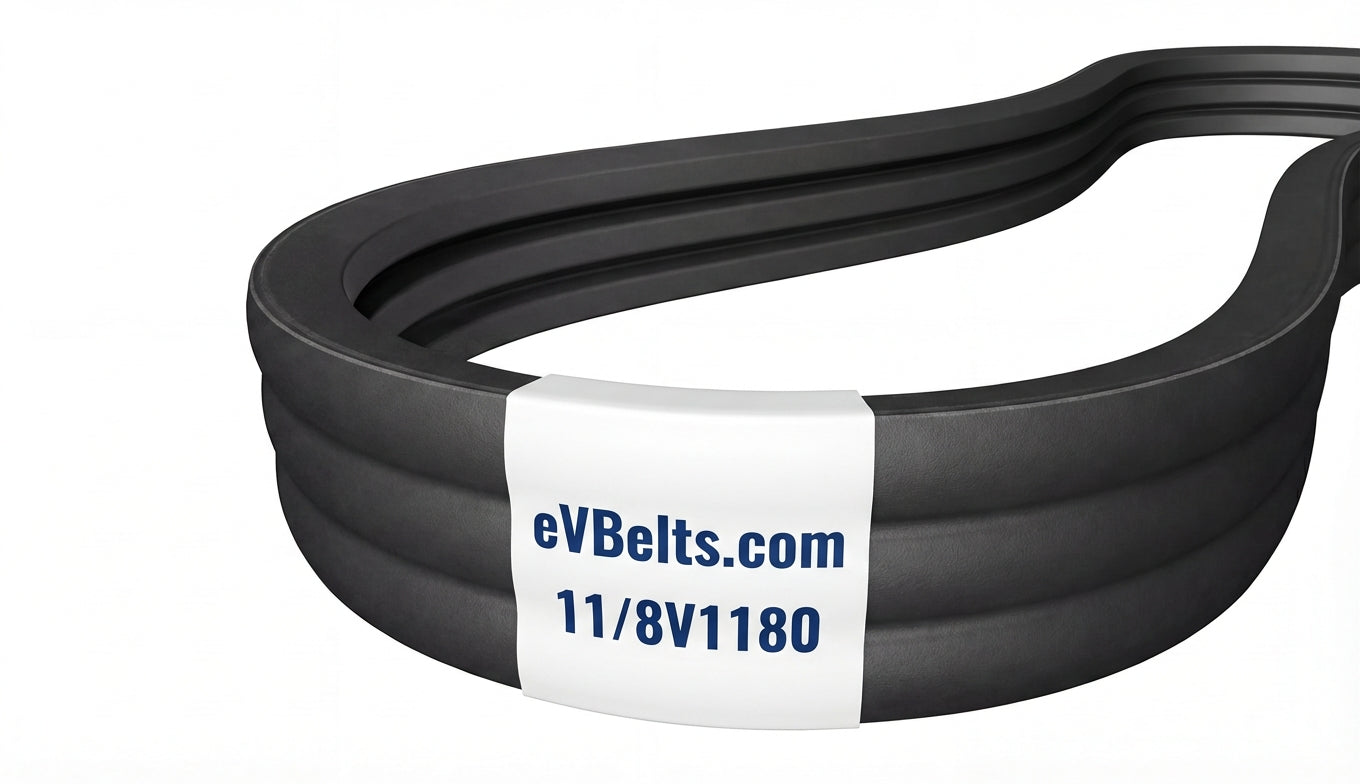

11/8V1180

Top Width: 11.3" (287.02mm)
Outside Length: 119" (3022.6mm)
Inside Length: 116.5" (2959.1mm)
Min Pulley Diameter: 12.5"
Configuration: 11-Band Set

The 11/8V1180 is a factory-joined 11-band 8V banded belt assembly measuring 11.3" wide x 119" long, featuring oil and heat resistant rubber construction.

SKU: 1224840

$1,080.36

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/8V1180
Top Width	11.3 in / 287.02 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	116.5 in / 2959.1 mm
Outside Length	119.0 in / 3022.6 mm
Effective Length	118.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	11
