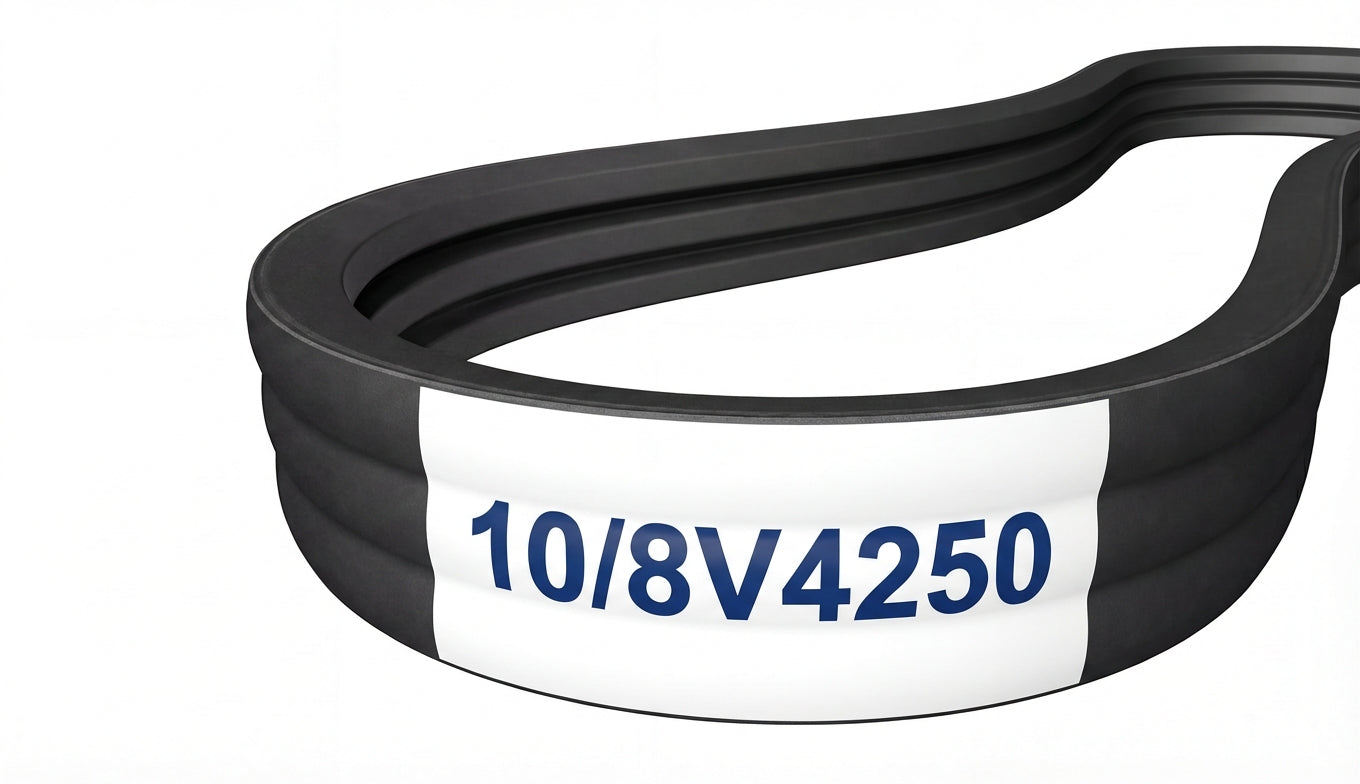

10/8V4250

Top Width: 10.27" (260.86mm)
Outside Length: 426" (10820.4mm)
Inside Length: 423.5" (10756.9mm)
Min Pulley Diameter: 12.5"
Configuration: 10-Band Set

The 10/8V4250 is a factory-joined 10-band 8V banded belt assembly measuring 10.27" wide x 426" long, featuring oil and heat resistant rubber construction.

SKU: 1224833

$3,754.85

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	10/8V4250
Top Width	10.27 in / 260.86 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	423.5 in / 10756.9 mm
Outside Length	426.0 in / 10820.4 mm
Effective Length	425.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	10
