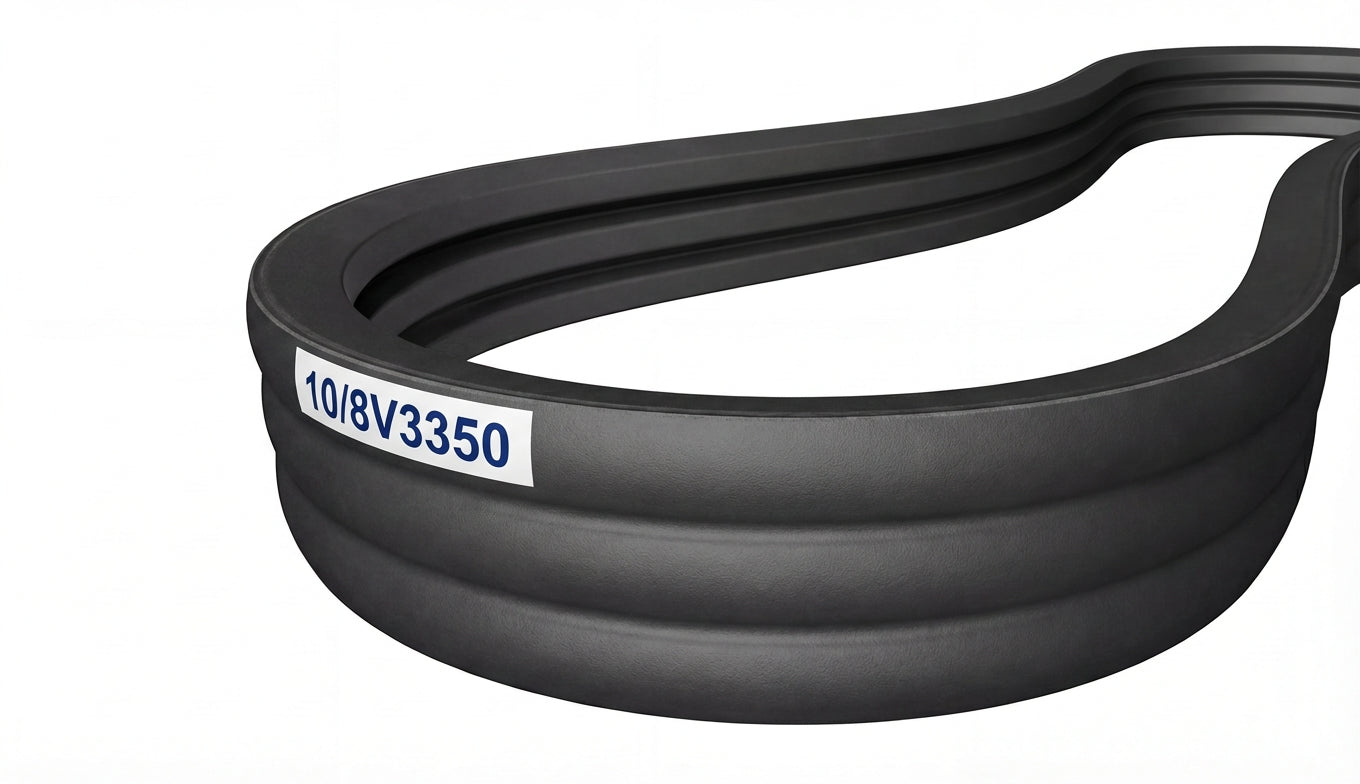

10/8V3350

Top Width: 10.27" (260.86mm)
Outside Length: 336" (8534.4mm)
Inside Length: 333.5" (8470.9mm)
Min Pulley Diameter: 12.5"
Configuration: 10-Band Set

The 10/8V3350 is a factory-joined 10-band 8V banded belt assembly measuring 10.27" wide x 336" long, featuring oil and heat resistant rubber construction.

SKU: 1224828

$1,744.11

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/8V3350
Top Width	10.27 in / 260.86 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	333.5 in / 8470.9 mm
Outside Length	336.0 in / 8534.4 mm
Effective Length	335.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	10
