10/8V2650

Top Width: 10.27" (260.86mm)
Outside Length: 266" (6756.4mm)
Inside Length: 263.5" (6692.9mm)
Min Pulley Diameter: 12.5"
Configuration: 10-Band Set

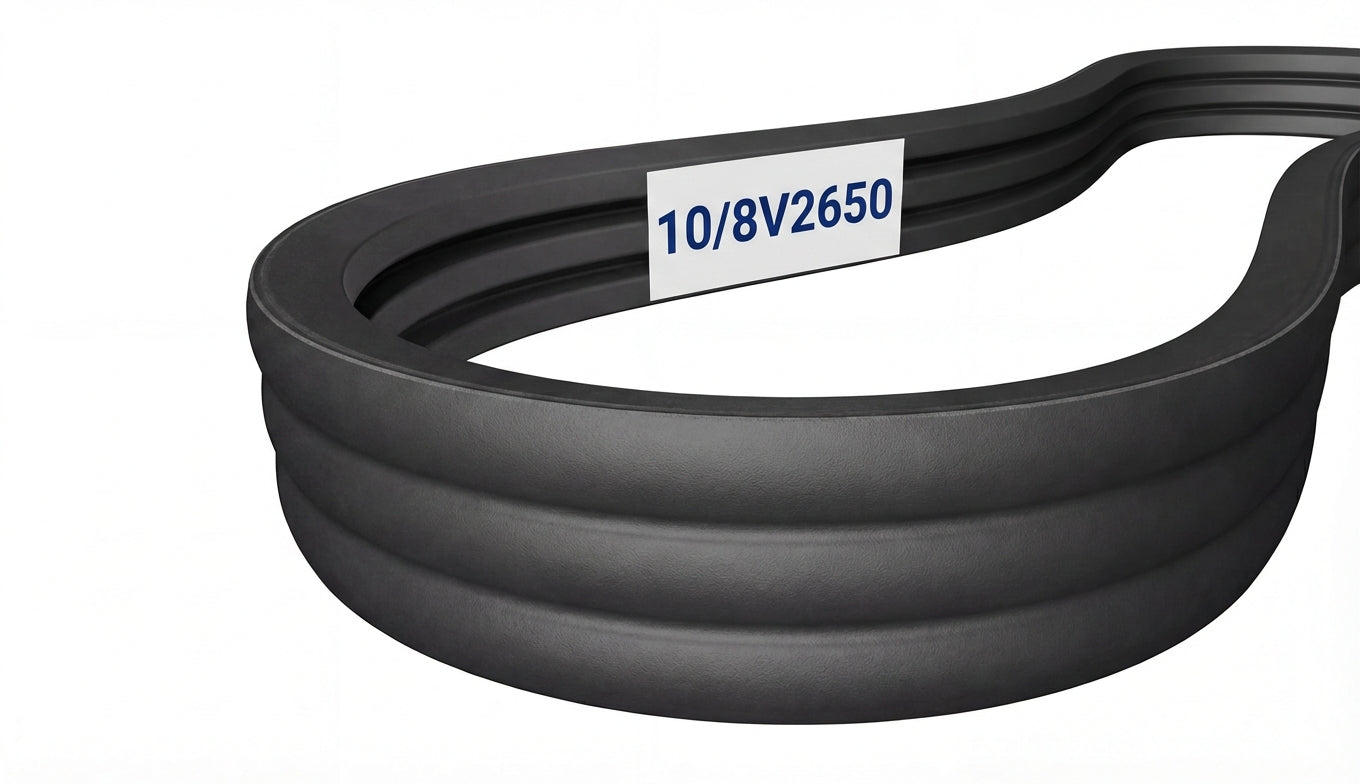

The 10/8V2650 is a factory-joined 10-band 8V banded belt assembly measuring 10.27" wide x 266" long, featuring oil and heat resistant rubber construction.

SKU: 1224824

$1,933.04

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/8V2650
Top Width	10.27 in / 260.86 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	263.5 in / 6692.9 mm
Outside Length	266.0 in / 6756.4 mm
Effective Length	265.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	10
