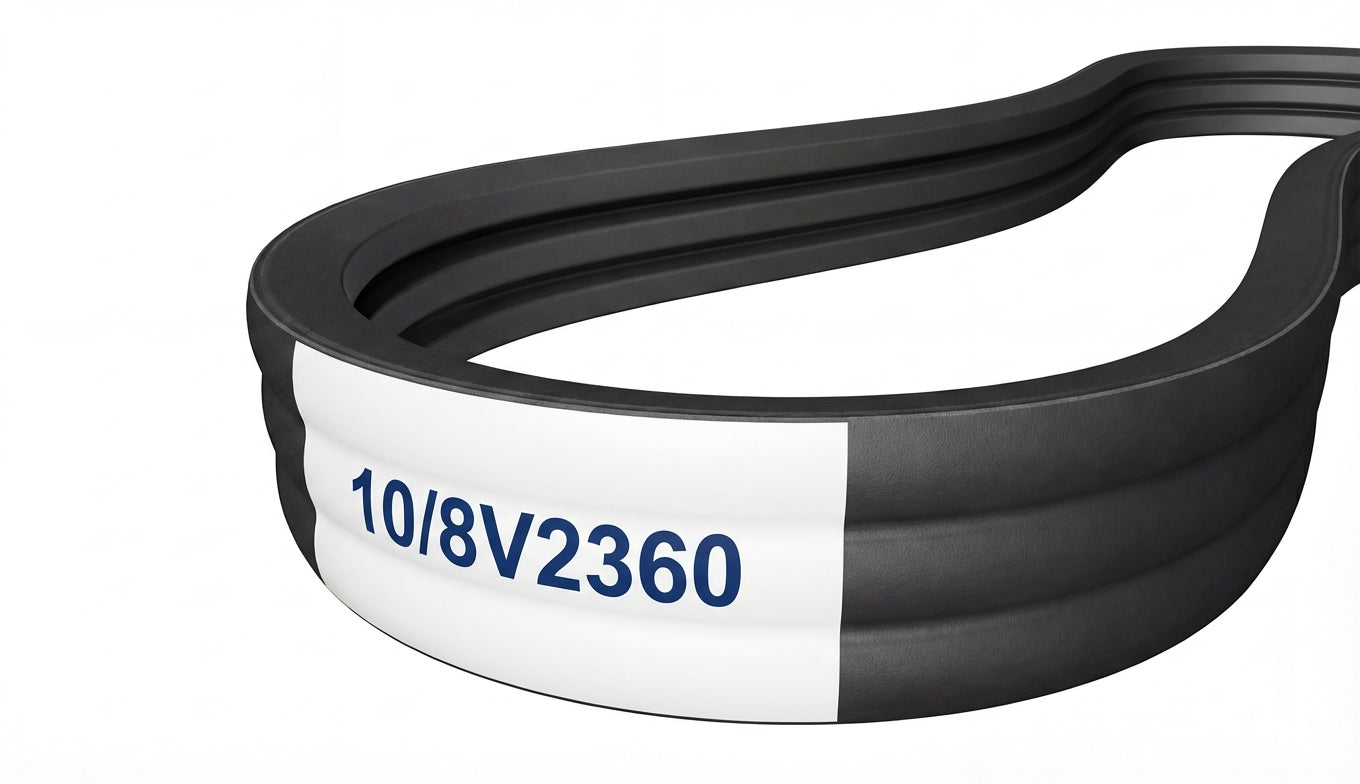

10/8V2360
The 10/8V2360 is a factory-joined 10-band 8V banded belt assembly measuring 10.27" wide x 237" long, featuring oil and heat resistant rubber construction.
SKU: 1224822
$2,065.40
206540
0 In Stock
Estimated delivery between June 16 and June 18.
Technical Specifications
| Part Number | 10/8V2360 |
| Top Width | 10.27 in / 260.86 mm |
| Belt Depth | 0.875 in / 22.22 mm |
| Inside Length | 234.5 in / 5956.3 mm |
| Outside Length | 237.0 in / 6019.8 mm |
| Effective Length | 236.0 in |
| Min Sheave Diameter | 12.5 in / 317.5 mm |
| Ribs | 10 |
