10/8V1180

Top Width: 10.27" (260.86mm)
Outside Length: 119" (3022.6mm)
Inside Length: 116.5" (2959.1mm)
Min Pulley Diameter: 12.5"
Configuration: 10-Band Set

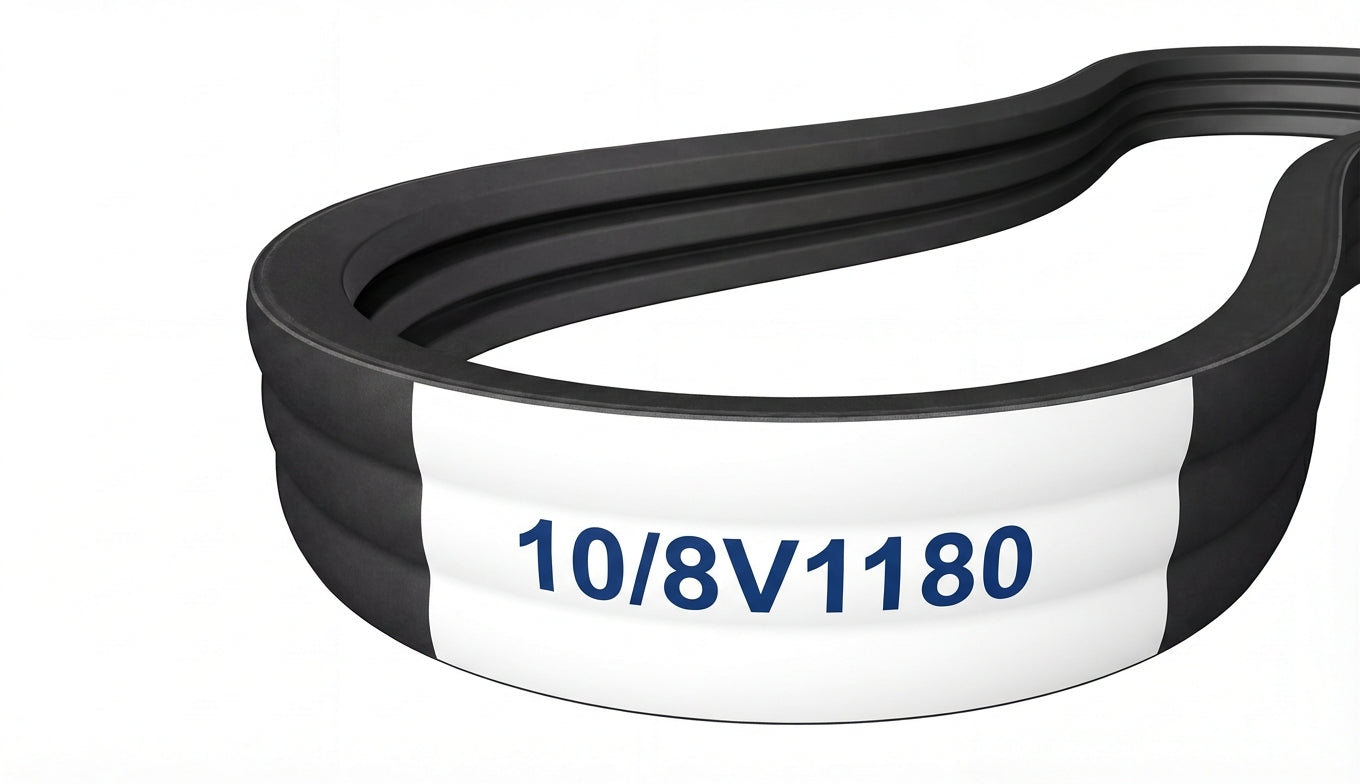

The 10/8V1180 is a factory-joined 10-band 8V banded belt assembly measuring 10.27" wide x 119" long, featuring oil and heat resistant rubber construction.

SKU: 1224810

$818.46

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/8V1180
Top Width	10.27 in / 260.86 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	116.5 in / 2959.1 mm
Outside Length	119.0 in / 3022.6 mm
Effective Length	118.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	10
