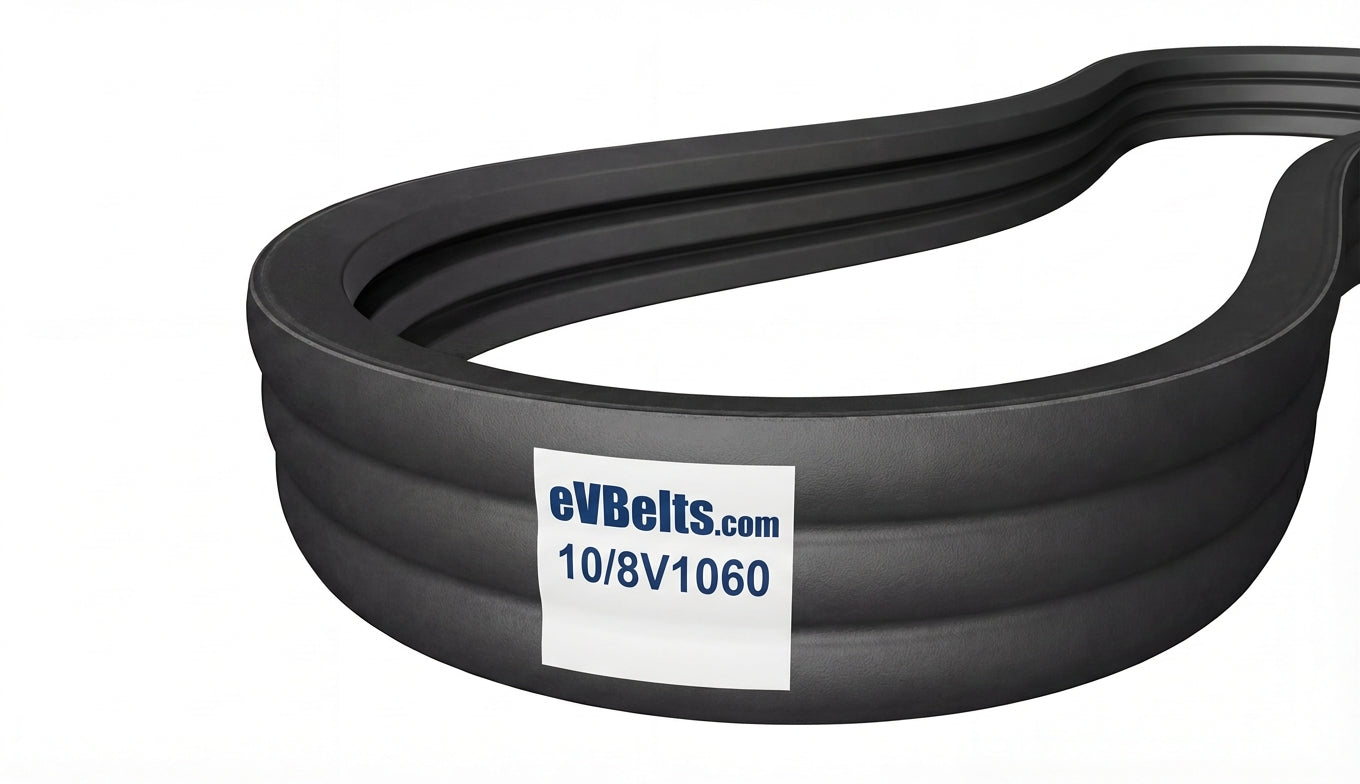

10/8V1060

Top Width: 10.27" (260.86mm)
Outside Length: 107" (2717.8mm)
Inside Length: 104.5" (2654.3mm)
Min Pulley Diameter: 12.5"
Configuration: 10-Band Set

The 10/8V1060 is a factory-joined 10-band 8V banded belt assembly measuring 10.27" wide x 107" long, featuring oil and heat resistant rubber construction.

SKU: 1224809

$879.60

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/8V1060
Top Width	10.27 in / 260.86 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	104.5 in / 2654.3 mm
Outside Length	107.0 in / 2717.8 mm
Effective Length	106.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	10
