5/7M580JB

Top Width: 0.925" (23.5mm)
Outside Length: 22.83" (580mm)
Inside Length: 22.64" (575mm)
Min Pulley Diameter: 2.48"
Configuration: 5-Band Set

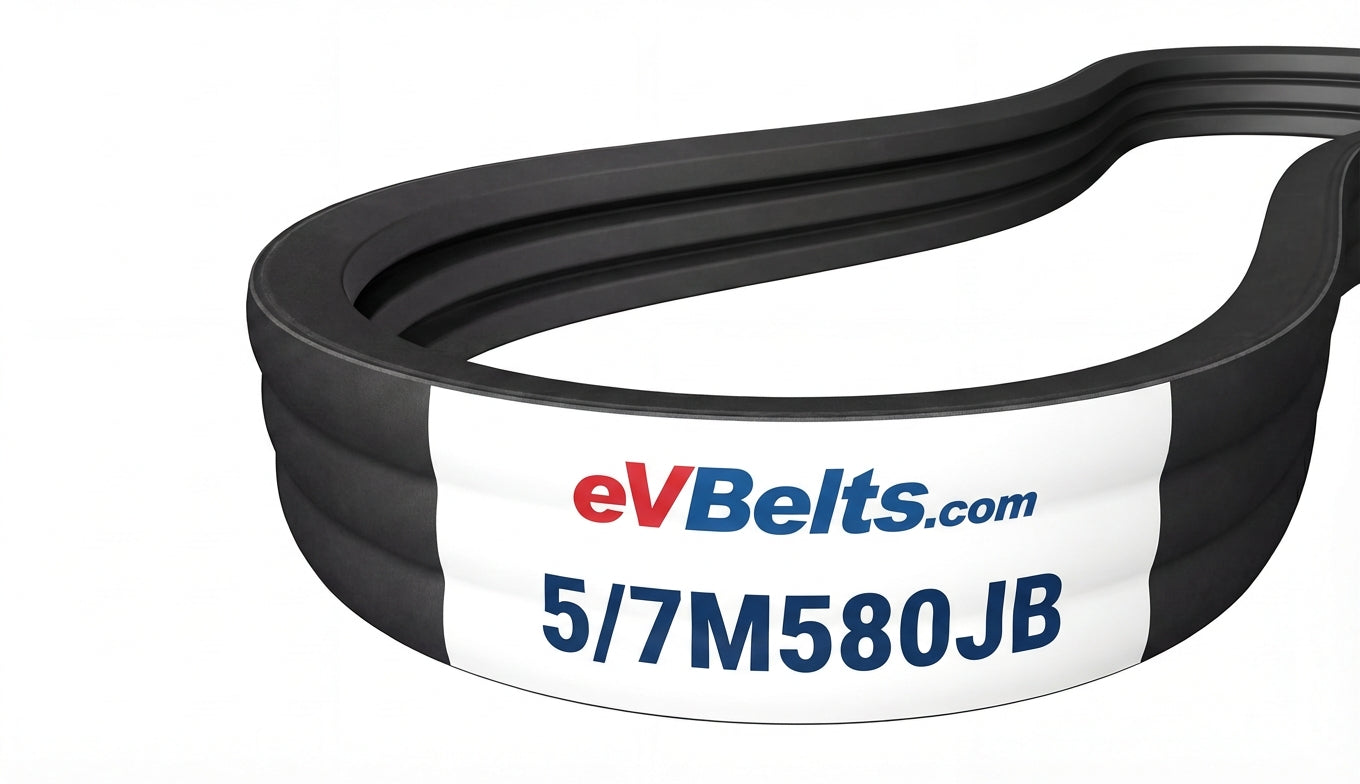

The 5/7M580JB is a factory-joined 5-band 7M banded belt assembly measuring 0.925" wide x 22.83" long, featuring oil and heat resistant rubber construction.

SKU: 1212765

$194.00

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/7M580JB
Top Width	0.925 in / 23.5 mm
Belt Depth	0.2165 in / 5.5 mm
Inside Length	22.64 in / 575.0 mm
Outside Length	22.83 in / 580.0 mm
Effective Length	22.83 in
Min Sheave Diameter	2.48 in / 63.0 mm
Ribs	5
