5/7M1950JB

Top Width: 0.925" (23.5mm)
Outside Length: 76.77" (1950mm)
Inside Length: 76.57" (1945mm)
Min Pulley Diameter: 2.48"
Configuration: 5-Band Set

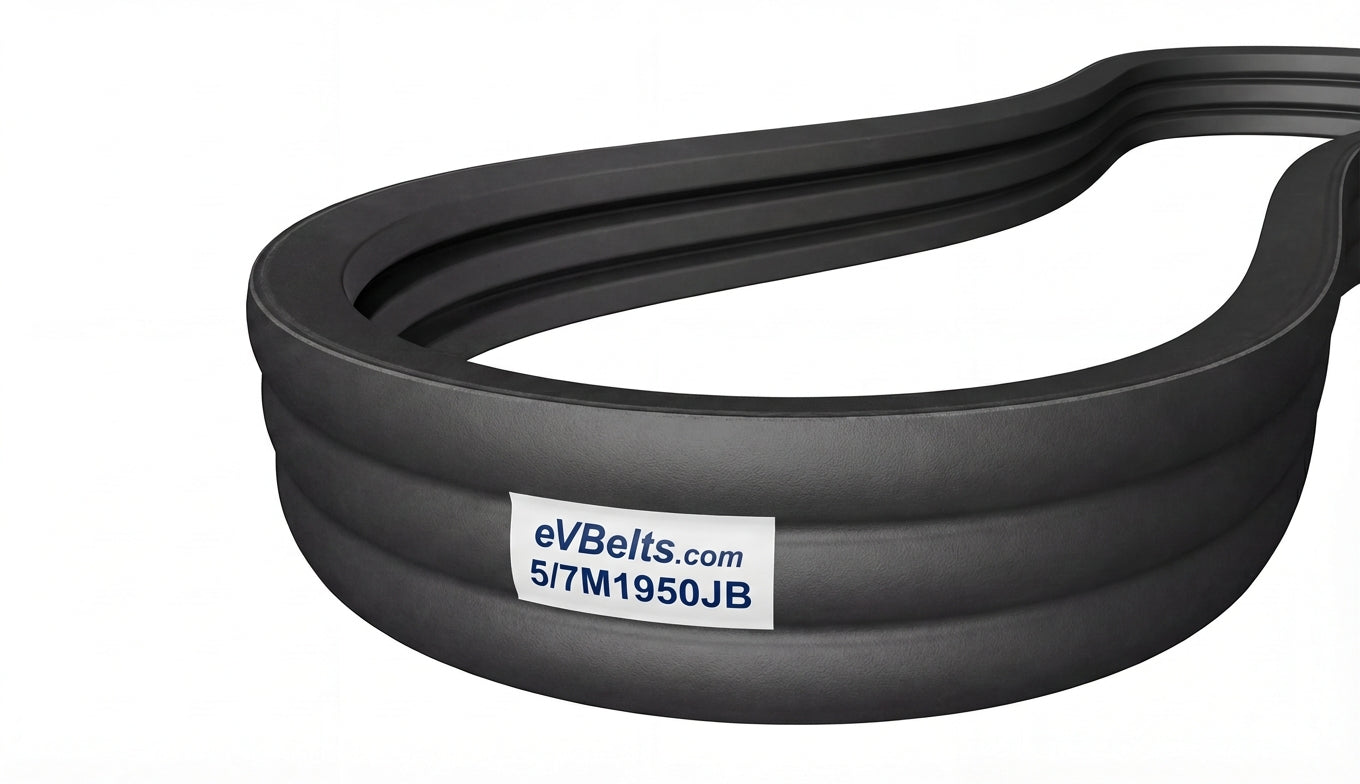

The 5/7M1950JB is a factory-joined 5-band 7M banded belt assembly measuring 0.925" wide x 76.77" long, featuring oil and heat resistant rubber construction.

SKU: 1212752

$309.93

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/7M1950JB
Top Width	0.925 in / 23.5 mm
Belt Depth	0.2165 in / 5.5 mm
Inside Length	76.57 in / 1945.0 mm
Outside Length	76.77 in / 1950.0 mm
Effective Length	76.77 in
Min Sheave Diameter	2.48 in / 63.0 mm
Ribs	5
