5/7M1220JB

Top Width: 0.925" (23.5mm)
Outside Length: 48.03" (1220mm)
Inside Length: 47.83" (1215mm)
Min Pulley Diameter: 2.48"
Configuration: 5-Band Set

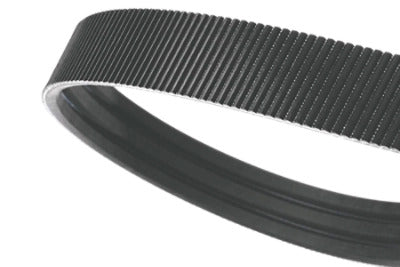

The 5/7M1220JB is a factory-joined 5-band 7M banded belt assembly measuring 0.925" wide x 48.03" long, featuring oil and heat resistant rubber construction.

SKU: 1212737

$163.13

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/7M1220JB
Top Width	0.925 in / 23.5 mm
Belt Depth	0.2165 in / 5.5 mm
Inside Length	47.83 in / 1215.0 mm
Outside Length	48.03 in / 1220.0 mm
Effective Length	48.03 in
Min Sheave Diameter	2.48 in / 63.0 mm
Ribs	5
