4/7M1030JB

Top Width: 0.74" (18.8mm)
Outside Length: 40.55" (1030mm)
Inside Length: 40.35" (1025mm)
Min Pulley Diameter: 2.48"
Configuration: 4-Band Set

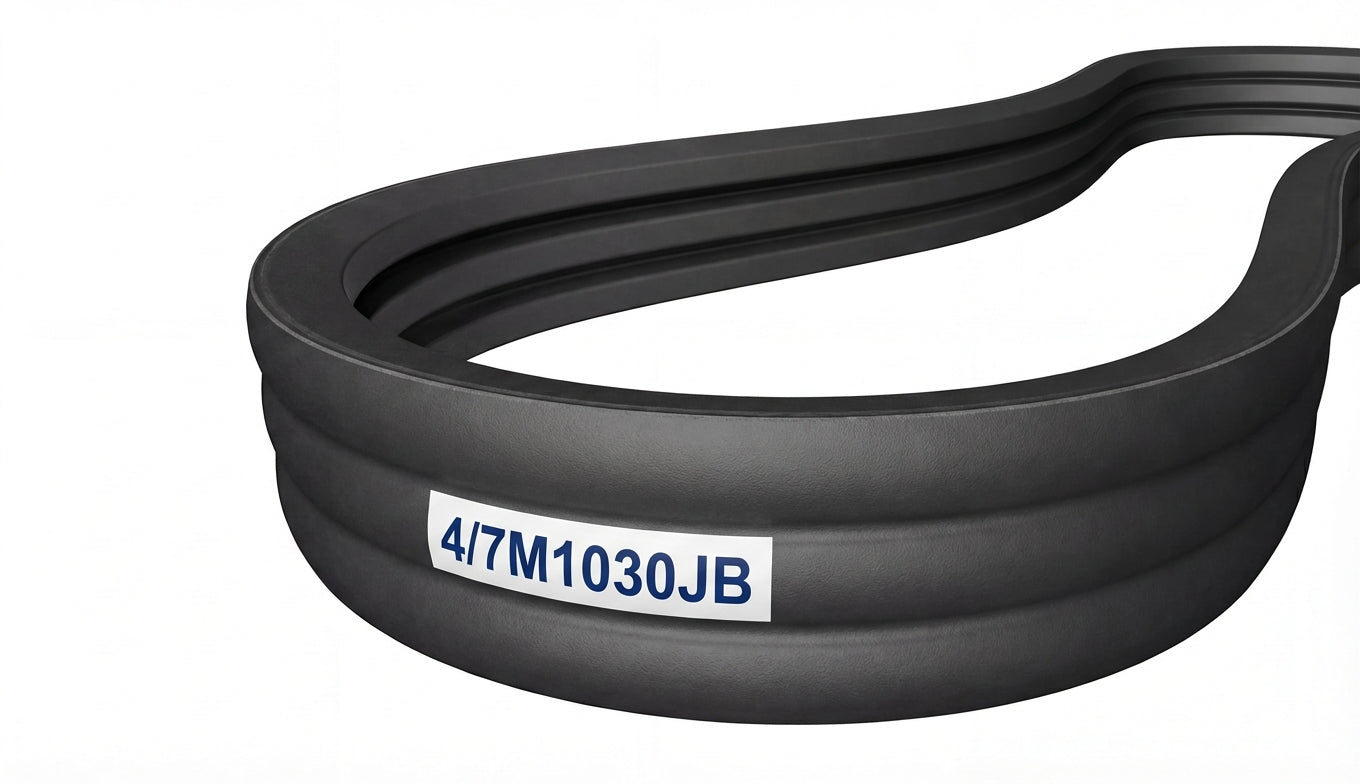

The 4/7M1030JB is a factory-joined 4-band 7M banded belt assembly measuring 0.74" wide x 40.55" long, featuring oil and heat resistant rubber construction.

SKU: 1212678

$190.32

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/7M1030JB
Top Width	0.74 in / 18.8 mm
Belt Depth	0.2165 in / 5.5 mm
Inside Length	40.35 in / 1025.0 mm
Outside Length	40.55 in / 1030.0 mm
Effective Length	40.55 in
Min Sheave Diameter	2.48 in / 63.0 mm
Ribs	4
