3/7M775JB

Top Width: 0.555" (14.1mm)
Outside Length: 30.51" (775mm)
Inside Length: 30.31" (770mm)
Min Pulley Diameter: 2.48"
Configuration: 3-Band Set

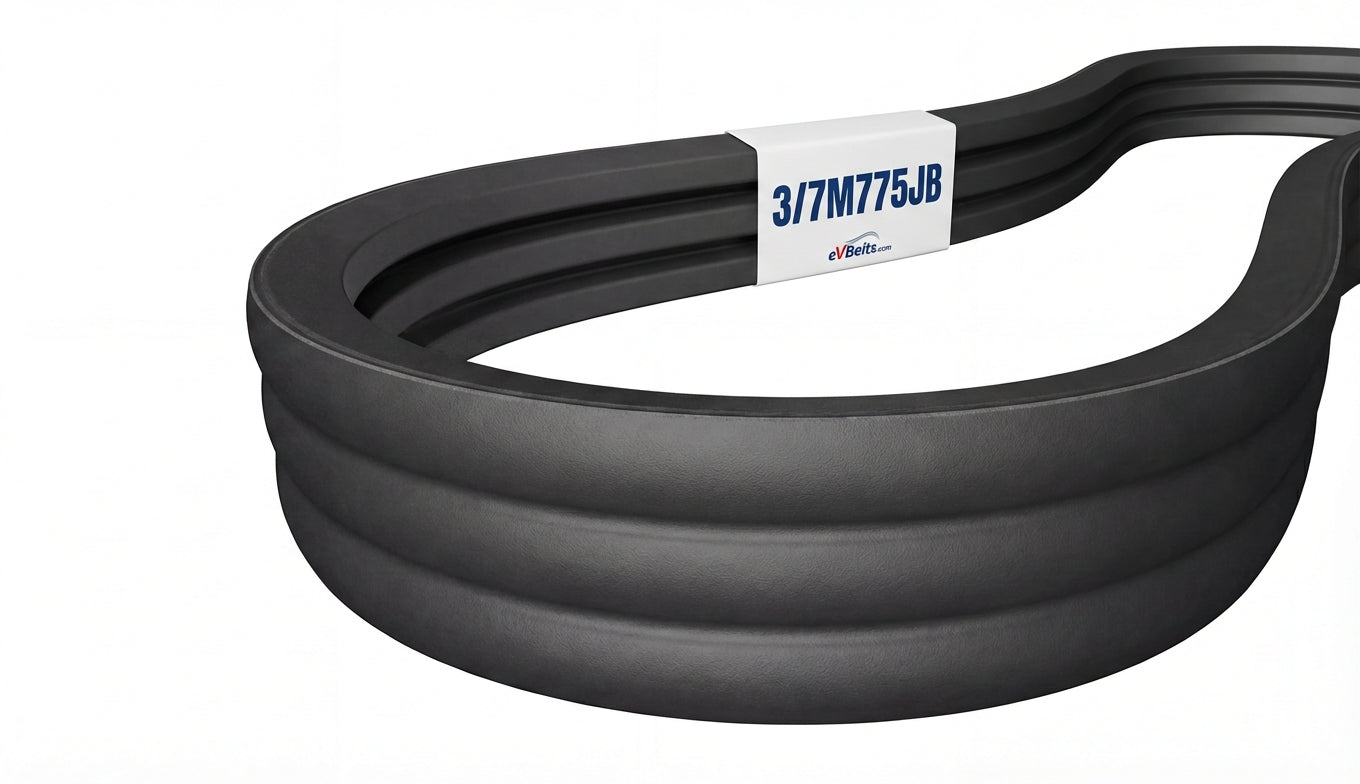

The 3/7M775JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 30.51" long, featuring oil and heat resistant rubber construction.

SKU: 1212667

$108.90

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/7M775JB
Top Width	0.555 in / 14.1 mm
Belt Depth	0.2165 in / 5.5 mm
Inside Length	30.31 in / 770.0 mm
Outside Length	30.51 in / 775.0 mm
Effective Length	30.51 in
Min Sheave Diameter	2.48 in / 63.0 mm
Ribs	3
