3/7M1700JB

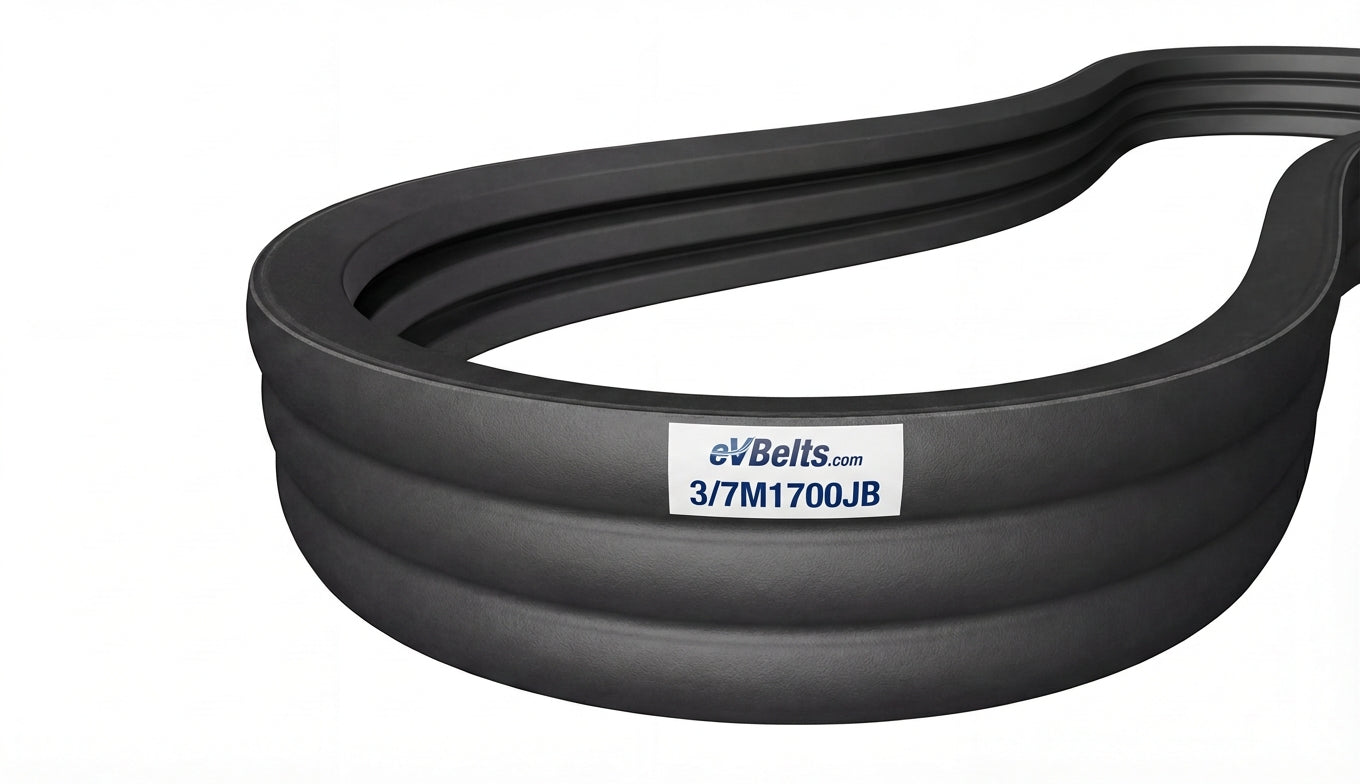

The 3/7M1700JB is a factory-joined 3-band 7M banded belt assembly measuring 0.555" wide x 66.93" long, featuring oil and heat resistant rubber construction.
SKU: 1212640
$171.50
17150
0 In Stock
Estimated delivery between June 22 and June 24.
Technical Specifications
| Part Number | 3/7M1700JB |
| Top Width | 0.555 in / 14.1 mm |
| Belt Depth | 0.2165 in / 5.5 mm |
| Inside Length | 66.73 in / 1695.0 mm |
| Outside Length | 66.93 in / 1700.0 mm |
| Effective Length | 66.93 in |
| Min Sheave Diameter | 2.48 in / 63.0 mm |
| Ribs | 3 |
