The 5VX800 is a cogged (notched) V-belt measuring 0.625" wide x 80.6" long, offering improved flexibility around smaller pulleys.

5VX800 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 80.6" (2047.2mm)
• Inside Length: 79" (2006.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX800

• CASE/IH: F37748
• CATERPILLAR: 5L7423
• GSI/GRAIN SYSTEMS, INC: MHC00038GSI
• GRAIN SYSTEMS, INC: MHC00604QUINCY

The 5VX800 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX810 is a cogged (notched) V-belt measuring 0.625" wide x 81.6" long, offering improved flexibility around smaller pulleys.

5VX810 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 81.6" (2072.6mm)
• Inside Length: 80" (2032mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX810 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX900 is a cogged (notched) V-belt measuring 0.625" wide x 90.6" long, offering improved flexibility around smaller pulleys.

5VX900 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 90.6" (2301.2mm)
• Inside Length: 89" (2260.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX900

• GSI/GRAIN SYSTEMS, INC: CE00562
• GSI/GRAIN SYSTEMS, INC: MHC00482

The 5VX900 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX880 is a cogged (notched) V-belt measuring 0.625" wide x 88.6" long, offering improved flexibility around smaller pulleys.

5VX880 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 88.6" (2250.4mm)
• Inside Length: 87" (2209.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX880 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX960 is a cogged (notched) V-belt measuring 0.625" wide x 96.6" long, offering improved flexibility around smaller pulleys.

5VX960 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 96.6" (2453.6mm)
• Inside Length: 95" (2413mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX960 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX950 is a cogged (notched) V-belt measuring 0.625" wide x 95.6" long, offering improved flexibility around smaller pulleys.

5VX950 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 95.6" (2428.2mm)
• Inside Length: 94" (2387.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX950

• BOSTWICK: BRAUN
• CATERPILLAR: 7A7882
• CATERPILLAR: 7L7882
• GSI/GRAIN SYSTEMS, INC: MHC00585GSI
• GRAIN SYSTEMS, INC: MHC00593

The 5VX950 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1030 is a cogged (notched) V-belt measuring 0.625" wide x 103.6" long, offering improved flexibility around smaller pulleys.

5VX1030 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 103.6" (2631.4mm)
• Inside Length: 102" (2590.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1030 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1000 is a cogged (notched) V-belt measuring 0.625" wide x 100.6" long, offering improved flexibility around smaller pulleys.

5VX1000 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 100.6" (2555.2mm)
• Inside Length: 99" (2514.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1000

• ALLIS CHALMERS: 826275
• ARBOS ITALY: 33379
• BEFCO: 000-6694
• BEFCO: 0006694
• CATERPILLAR: 6L8358
• CATERPILLAR: 6L8359
• GSI/GRAIN SYSTEMS, INC: MHC00475

The 5VX1000 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1120 is a cogged (notched) V-belt measuring 0.625" wide x 112.6" long, offering improved flexibility around smaller pulleys.

5VX1120 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 112.6" (2860mm)
• Inside Length: 111" (2819.4mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1120

• BOSTWICK: BRAUN
• N825740 GSI/GRAIN SYSTEMS, INC: MHC00132GSI
• GRAIN SYSTEMS, INC: MHC00479

The 5VX1120 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1060 is a cogged (notched) V-belt measuring 0.625" wide x 106.6" long, offering improved flexibility around smaller pulleys.

5VX1060 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 106.6" (2707.6mm)
• Inside Length: 105" (2667mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1060

• GSI/GRAIN SYSTEMS, INC: MHC00477GSI
• GRAIN SYSTEMS, INC: MHC00478

The 5VX1060 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1180 is a cogged (notched) V-belt measuring 0.625" wide x 118.6" long, offering improved flexibility around smaller pulleys.

5VX1180 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 118.6" (3012.4mm)
• Inside Length: 117" (2971.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1180

• GSI/GRAIN SYSTEMS, INC: MHC00158

The 5VX1180 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1150 is a cogged (notched) V-belt measuring 0.625" wide x 115.6" long, offering improved flexibility around smaller pulleys.

5VX1150 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 115.6" (2936.2mm)
• Inside Length: 114" (2895.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1150 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1230 is a cogged (notched) V-belt measuring 0.625" wide x 123.6" long, offering improved flexibility around smaller pulleys.

5VX1230 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 123.6" (3139.4mm)
• Inside Length: 122" (3098.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1230 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

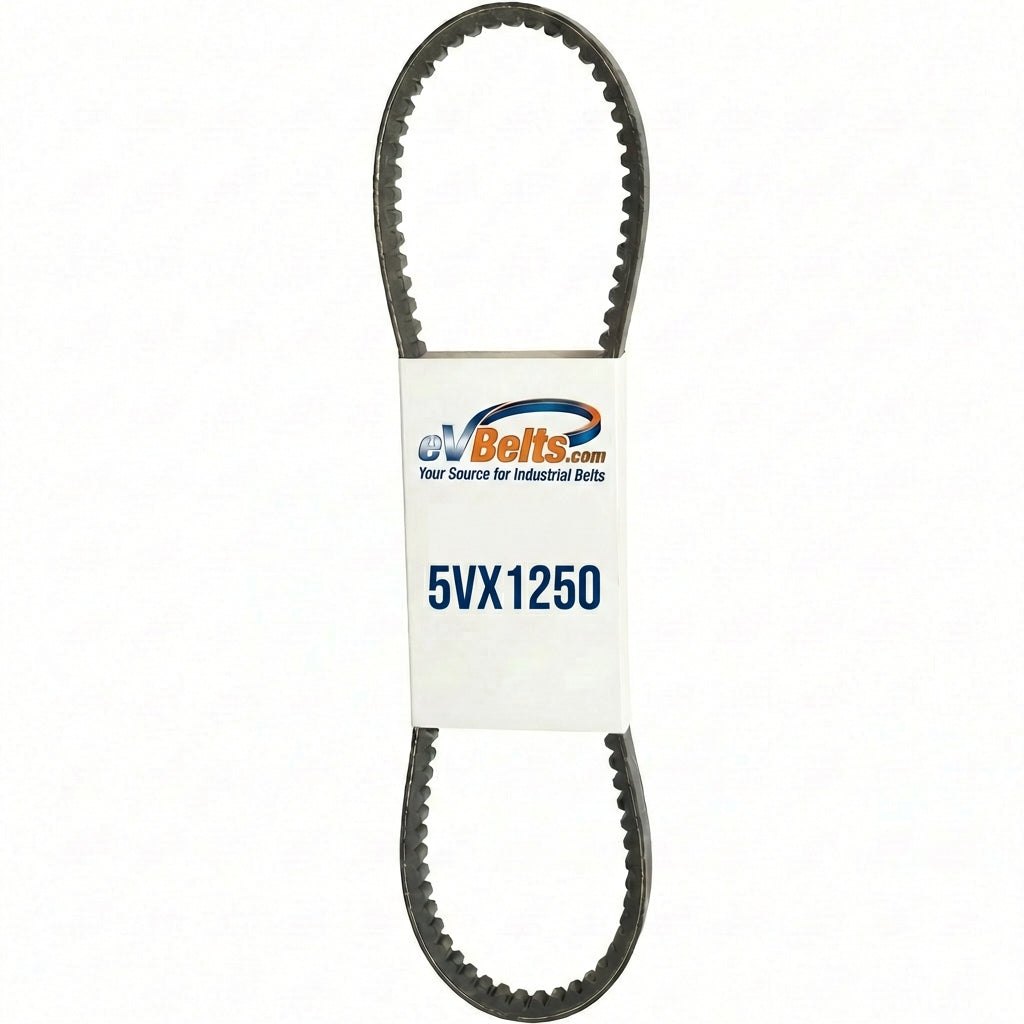

The 5VX1250 is a cogged (notched) V-belt measuring 0.625" wide x 125.6" long, offering improved flexibility around smaller pulleys.

5VX1250 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 125.6" (3190.2mm)
• Inside Length: 124" (3149.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1250

• GSI/GRAIN SYSTEMS, INC: MHC00057GSI
• GRAIN SYSTEMS, INC: MHC00663

The 5VX1250 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1400 is a cogged (notched) V-belt measuring 0.625" wide x 140.6" long, offering improved flexibility around smaller pulleys.

5VX1400 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 140.6" (3571.2mm)
• Inside Length: 139" (3530.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1400

• GSI/GRAIN SYSTEMS, INC: MHC00016

The 5VX1400 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1320 is a cogged (notched) V-belt measuring 0.625" wide x 132.6" long, offering improved flexibility around smaller pulleys.

5VX1320 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 132.6" (3368mm)
• Inside Length: 131" (3327.4mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1320 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

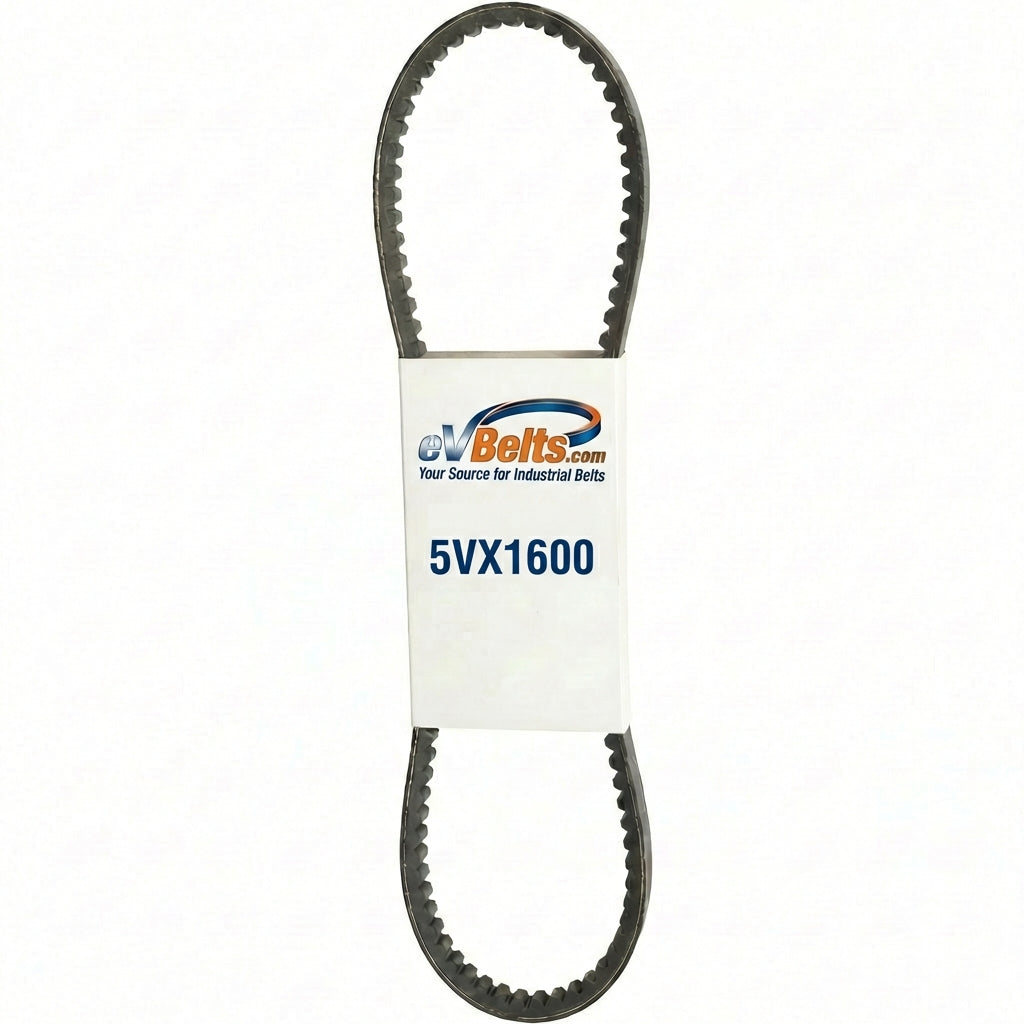

The 5VX1600 is a cogged (notched) V-belt measuring 0.625" wide x 160.6" long, offering improved flexibility around smaller pulleys.

5VX1600 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 160.6" (4079.2mm)
• Inside Length: 159" (4038.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1600

• GSI/GRAIN SYSTEMS, INC: MHC00162

The 5VX1600 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1800 is a cogged (notched) V-belt measuring 0.625" wide x 180.6" long, offering improved flexibility around smaller pulleys.

5VX1800 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 180.6" (4587.2mm)
• Inside Length: 179" (4546.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1800

• GSI/GRAIN SYSTEMS, INC: MHC00116

The 5VX1800 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1700 is a cogged (notched) V-belt measuring 0.625" wide x 170.6" long, offering improved flexibility around smaller pulleys.

5VX1700 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 170.6" (4333.2mm)
• Inside Length: 169" (4292.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX1700

• GSI/GRAIN SYSTEMS, INC: MHC00862

The 5VX1700 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX2000 is a cogged (notched) V-belt measuring 0.625" wide x 200.6" long, offering improved flexibility around smaller pulleys.

5VX2000 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 200.6" (5095.2mm)
• Inside Length: 199" (5054.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX2000

• GSI/GRAIN SYSTEMS, INC: KDPDV0001

The 5VX2000 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1900 is a cogged (notched) V-belt measuring 0.625" wide x 190.6" long, offering improved flexibility around smaller pulleys.

5VX1900 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 190.6" (4841.2mm)
• Inside Length: 189" (4800.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1900 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

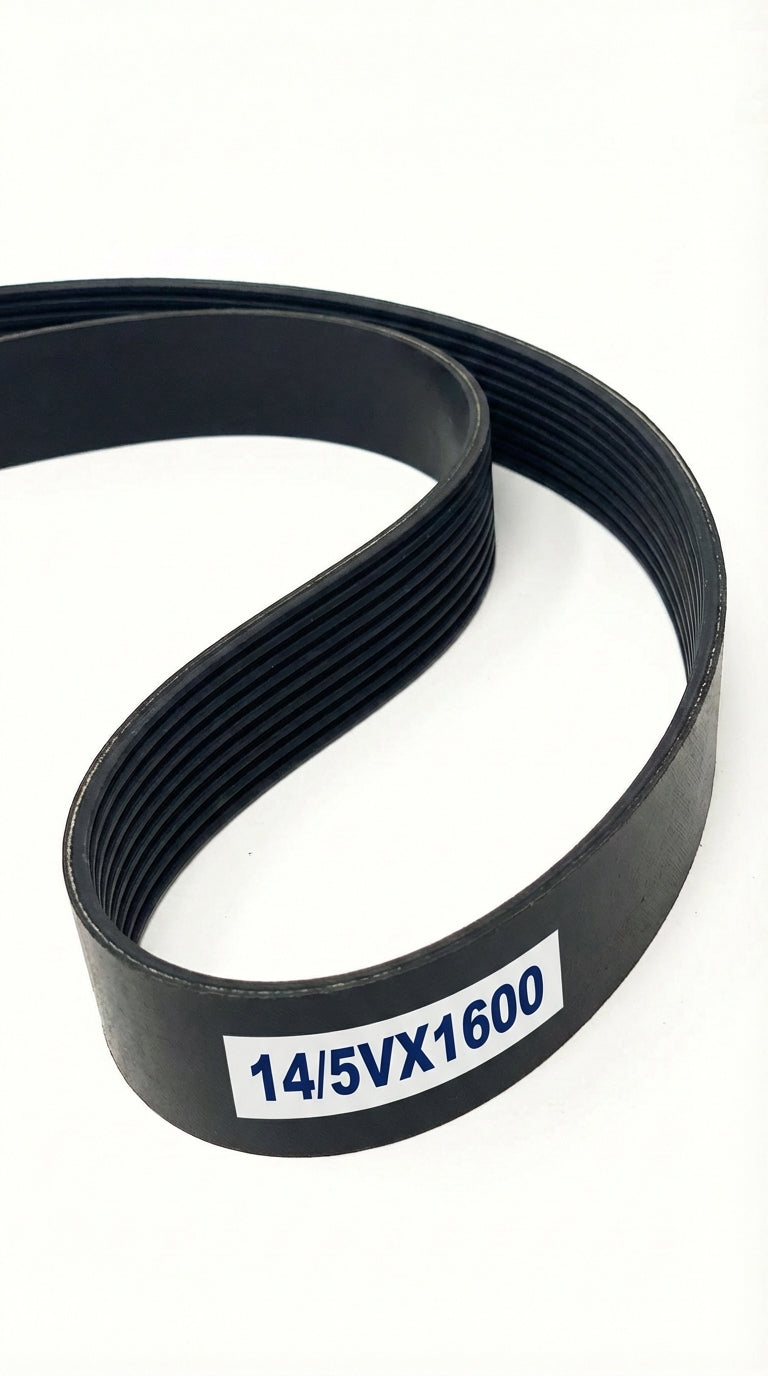

The 14/5VX1600 is a factory-joined 14-band 5VX banded belt assembly measuring 9.14" wide x 160.6" long, offering improved flexibility around smaller pulleys.

14/5VX1600 Specifications

• Top Width: 9.14" (232.16mm)
• Outside Length: 160.6" (4079.2mm)
• Inside Length: 159" (4038.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 14-Band Set

The 14/5VX1600 banded belt assembly ensures synchronized operation and even load distribution across all grooves.

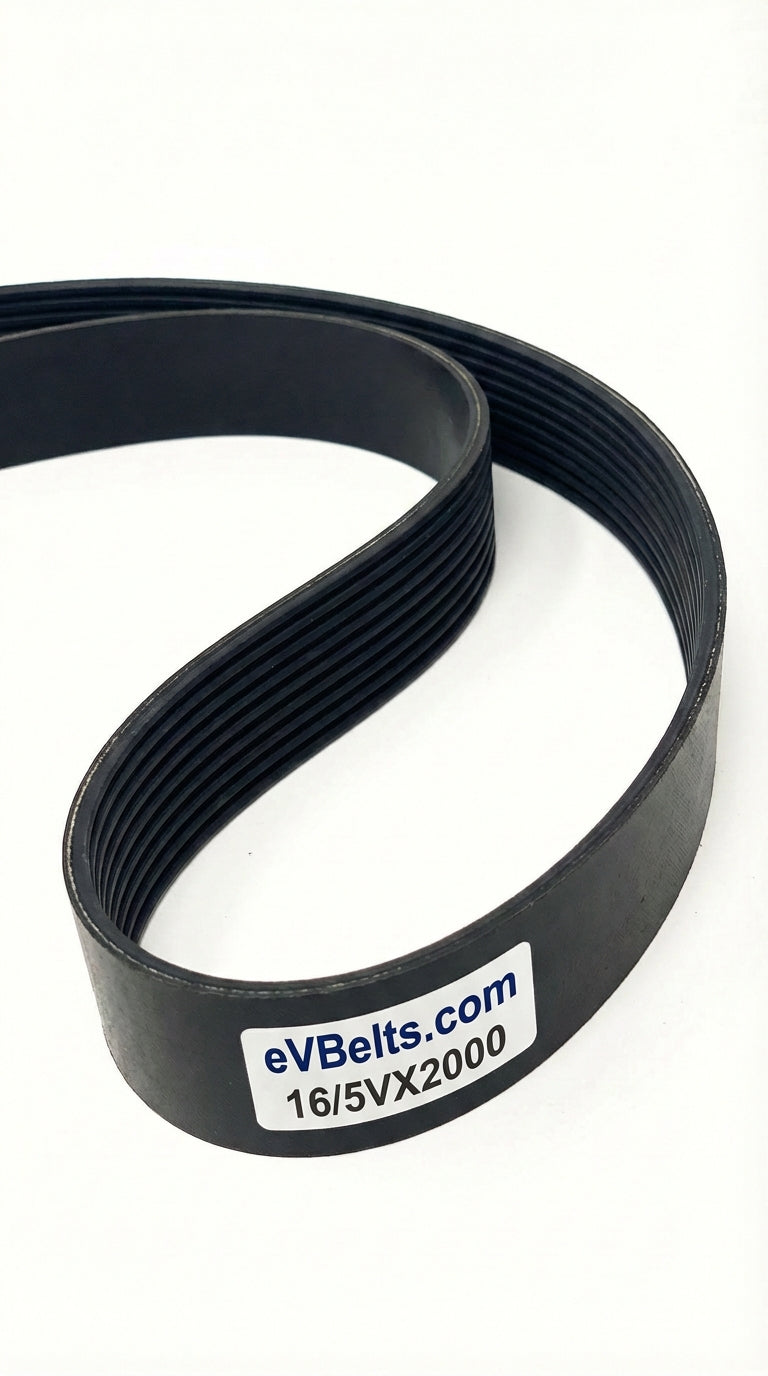

The 16/5VX2000 is a factory-joined 16-band 5VX banded belt assembly measuring 10.45" wide x 200.6" long, offering improved flexibility around smaller pulleys.

16/5VX2000 Specifications

• Top Width: 10.45" (265.43mm)
• Outside Length: 200.6" (5095.2mm)
• Inside Length: 199" (5054.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched
• Configuration: 16-Band Set

The 16/5VX2000 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
