The 5VX1220 is a cogged (notched) V-belt measuring 0.625" wide x 122.6" long, offering improved flexibility around smaller pulleys.

5VX1220 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 122.6" (3114mm)
• Inside Length: 121" (3073.4mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1220 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1277 is a cogged (notched) V-belt measuring 0.625" wide x 128.3" long, offering improved flexibility around smaller pulleys.

5VX1277 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 128.3" (3258.8mm)
• Inside Length: 126.7" (3218.2mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1277 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1374 is a cogged (notched) V-belt measuring 0.625" wide x 138" long, offering improved flexibility around smaller pulleys.

5VX1374 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 138" (3505.2mm)
• Inside Length: 136.4" (3464.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1374 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1701 is a cogged (notched) V-belt measuring 0.625" wide x 170.7" long, offering improved flexibility around smaller pulleys.

5VX1701 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 170.7" (4335.8mm)
• Inside Length: 169.1" (4295.1mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1701 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX1469 is a cogged (notched) V-belt measuring 0.625" wide x 147.5" long, offering improved flexibility around smaller pulleys.

5VX1469 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 147.5" (3746.5mm)
• Inside Length: 145.9" (3705.9mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1469 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

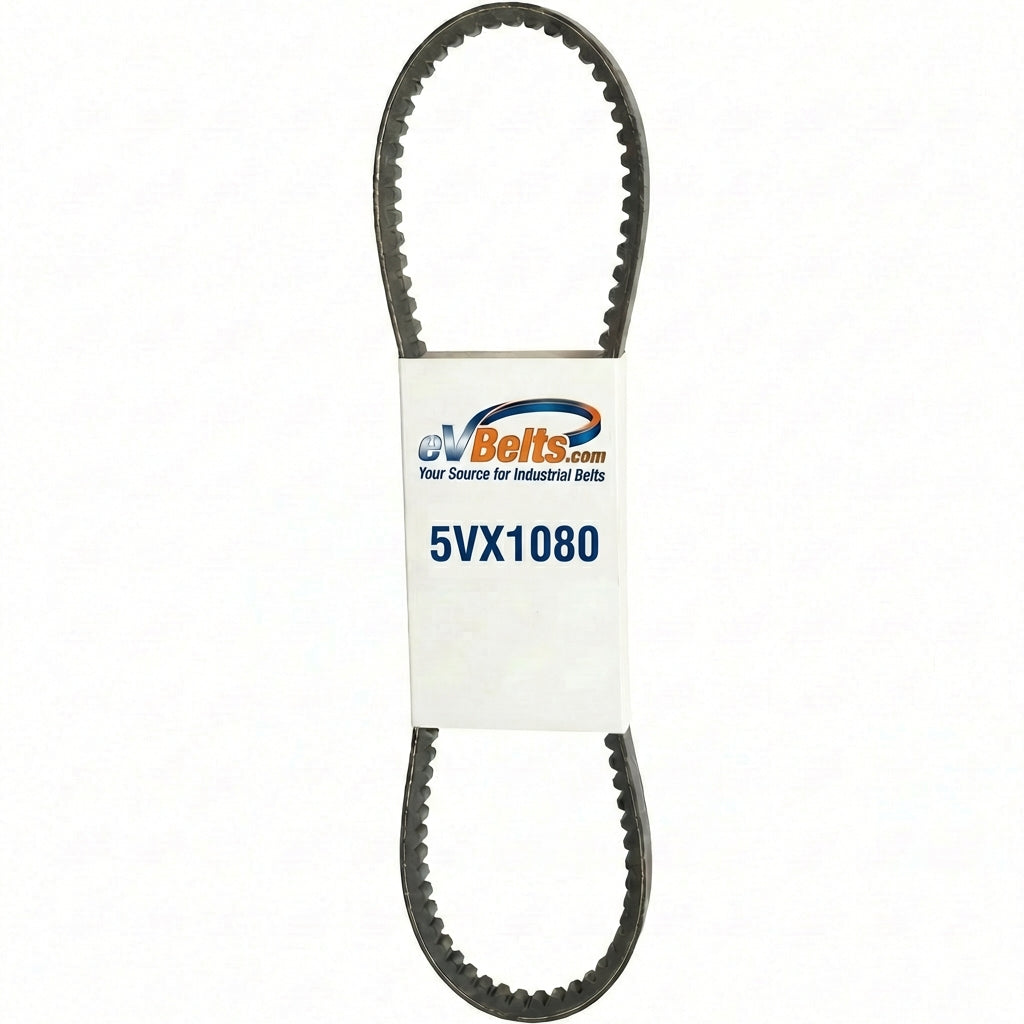

The 5VX1080 is a cogged (notched) V-belt measuring 0.625" wide x 108.6" long, offering improved flexibility around smaller pulleys.

5VX1080 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 108.6" (2758.4mm)
• Inside Length: 107" (2717.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX1080 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

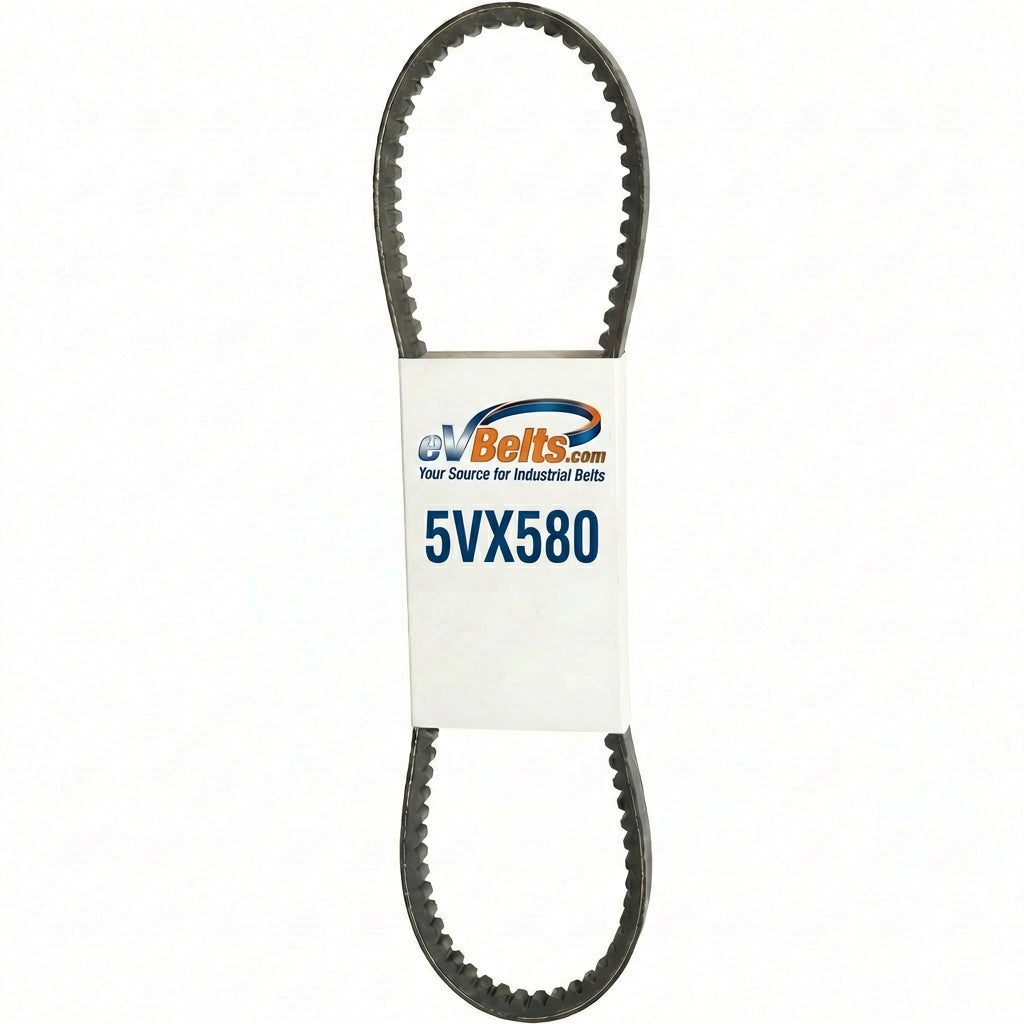

The 5VX580 is a cogged (notched) V-belt measuring 0.625" wide x 58.6" long, offering improved flexibility around smaller pulleys.

5VX580 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 58.6" (1488.4mm)
• Inside Length: 57" (1447.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX580 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX590 is a cogged (notched) V-belt measuring 0.625" wide x 59.6" long, offering improved flexibility around smaller pulleys.

5VX590 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 59.6" (1513.8mm)
• Inside Length: 58" (1473.2mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX590 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX660 is a cogged (notched) V-belt measuring 0.625" wide x 66.6" long, offering improved flexibility around smaller pulleys.

5VX660 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 66.6" (1691.6mm)
• Inside Length: 65" (1651mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX660 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX840 is a cogged (notched) V-belt measuring 0.625" wide x 84.6" long, offering improved flexibility around smaller pulleys.

5VX840 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 84.6" (2148.8mm)
• Inside Length: 83" (2108.2mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX840 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX680 is a cogged (notched) V-belt measuring 0.625" wide x 68.6" long, offering improved flexibility around smaller pulleys.

5VX680 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 68.6" (1742.4mm)
• Inside Length: 67" (1701.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX680 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX930 is a cogged (notched) V-belt measuring 0.625" wide x 93.6" long, offering improved flexibility around smaller pulleys.

5VX930 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 93.6" (2377.4mm)
• Inside Length: 92" (2336.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX930 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX470 is a cogged (notched) V-belt measuring 0.625" wide x 47.6" long, offering improved flexibility around smaller pulleys.

5VX470 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 47.6" (1209mm)
• Inside Length: 46" (1168.4mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX470 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX490 is a cogged (notched) V-belt measuring 0.625" wide x 49.6" long, offering improved flexibility around smaller pulleys.

5VX490 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 49.6" (1259.8mm)
• Inside Length: 48" (1219.2mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX490 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX500 is a cogged (notched) V-belt measuring 0.625" wide x 50.6" long, offering improved flexibility around smaller pulleys.

5VX500 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 50.6" (1285.2mm)
• Inside Length: 49" (1244.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX500 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX510 is a cogged (notched) V-belt measuring 0.625" wide x 51.6" long, offering improved flexibility around smaller pulleys.

5VX510 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 51.6" (1310.6mm)
• Inside Length: 50" (1270mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX510 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX530 is a cogged (notched) V-belt measuring 0.625" wide x 53.6" long, offering improved flexibility around smaller pulleys.

5VX530 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 53.6" (1361.4mm)
• Inside Length: 52" (1320.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX530 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX540 is a cogged (notched) V-belt measuring 0.625" wide x 54.6" long, offering improved flexibility around smaller pulleys.

5VX540 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 54.6" (1386.8mm)
• Inside Length: 53" (1346.2mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX540 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX550 is a cogged (notched) V-belt measuring 0.625" wide x 55.6" long, offering improved flexibility around smaller pulleys.

5VX550 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 55.6" (1412.2mm)
• Inside Length: 54" (1371.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX550 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX560 is a cogged (notched) V-belt measuring 0.625" wide x 56.6" long, offering improved flexibility around smaller pulleys.

5VX560 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 56.6" (1437.6mm)
• Inside Length: 55" (1397mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX560

• CATERPILLAR: 5L5185
• CATERPILLAR: 6L3510

The 5VX560 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX570 is a cogged (notched) V-belt measuring 0.625" wide x 57.6" long, offering improved flexibility around smaller pulleys.

5VX570 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 57.6" (1463mm)
• Inside Length: 56" (1422.4mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX570 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX600 is a cogged (notched) V-belt measuring 0.625" wide x 60.6" long, offering improved flexibility around smaller pulleys.

5VX600 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 60.6" (1539.2mm)
• Inside Length: 59" (1498.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX600

• QUINCY: 128770-460

The 5VX600 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX630 is a cogged (notched) V-belt measuring 0.625" wide x 63.6" long, offering improved flexibility around smaller pulleys.

5VX630 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 63.6" (1615.4mm)
• Inside Length: 62" (1574.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX630

• ARBOS ITALY: 33380CATERPILLAR
• L7704 QUINCY: 128770-463

The 5VX630 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX670 is a cogged (notched) V-belt measuring 0.625" wide x 67.6" long, offering improved flexibility around smaller pulleys.

5VX670 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 67.6" (1717mm)
• Inside Length: 66" (1676.4mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX670

• GSI/GRAIN SYSTEMS, INC: MHC00118MACDON
• K11654S QUINCY: 128770-467VERMEER

The 5VX670 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX690 is a cogged (notched) V-belt measuring 0.625" wide x 69.6" long, offering improved flexibility around smaller pulleys.

5VX690 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 69.6" (1767.8mm)
• Inside Length: 68" (1727.2mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX690 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX730 is a cogged (notched) V-belt measuring 0.625" wide x 73.6" long, offering improved flexibility around smaller pulleys.

5VX730 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 73.6" (1869.4mm)
• Inside Length: 72" (1828.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX730 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX710 is a cogged (notched) V-belt measuring 0.625" wide x 71.6" long, offering improved flexibility around smaller pulleys.

5VX710 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 71.6" (1818.6mm)
• Inside Length: 70" (1778mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX710

• CATERPILLAR: 3R5603
• CATERPILLAR: 3R5604
• GSI/GRAIN SYSTEMS, INC: MHC00114QUINCY

The 5VX710 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX740 is a cogged (notched) V-belt measuring 0.625" wide x 74.6" long, offering improved flexibility around smaller pulleys.

5VX740 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 74.6" (1894.8mm)
• Inside Length: 73" (1854.2mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX740 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX750 is a cogged (notched) V-belt measuring 0.625" wide x 75.6" long, offering improved flexibility around smaller pulleys.

5VX750 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 75.6" (1920.2mm)
• Inside Length: 74" (1879.6mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 5VX750

• ARTSWAY: 5460CATERPILLAR
• R9089 CATERPILLAR: 3R9090
• GSI/GRAIN SYSTEMS, INC: MHC00130QUINCY
• QUINCY: 128770-575

The 5VX750 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5VX780 is a cogged (notched) V-belt measuring 0.625" wide x 78.6" long, offering improved flexibility around smaller pulleys.

5VX780 Specifications

• Top Width: 0.625" (15.88mm)
• Outside Length: 78.6" (1996.4mm)
• Inside Length: 77" (1955.8mm)
• Min Pulley Diameter: 4.4"
• Profile: Cogged/Notched

The 5VX780 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
