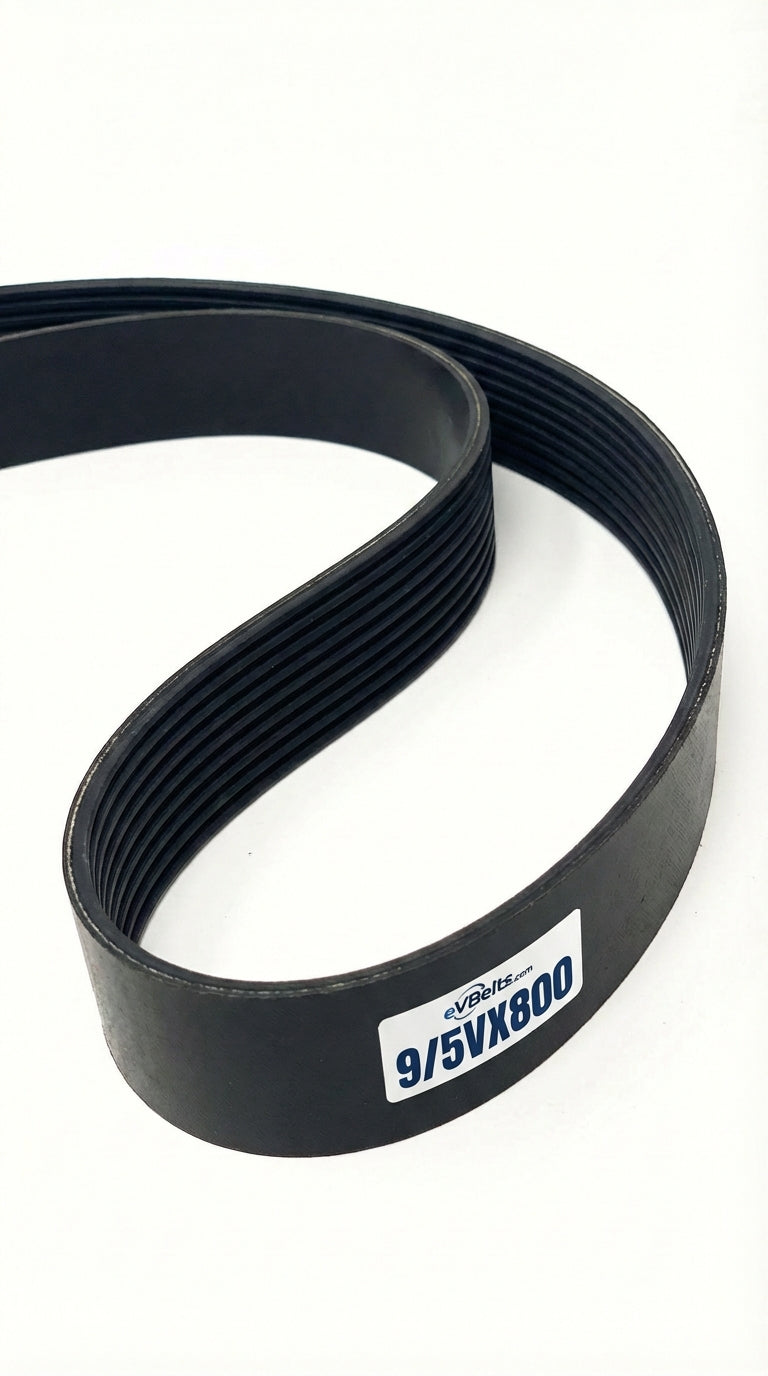

9/5VX800

Top Width: 5.865" (148.97mm)
Outside Length: 80.6" (2047.2mm)
Inside Length: 79" (2006.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 9-Band Set

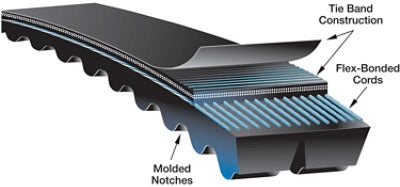

The 9/5VX800 is a factory-joined 9-band 5VX banded belt assembly measuring 5.865" wide x 80.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226052

$307.62

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/5VX800
Top Width	5.865 in / 148.97 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	79.0 in / 2006.6 mm
Outside Length	80.6 in / 2047.2 mm
Effective Length	80.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	9
Cogged	Yes
