9/5VX1700

Top Width: 5.865" (148.97mm)
Outside Length: 170.6" (4333.2mm)
Inside Length: 169" (4292.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 9-Band Set

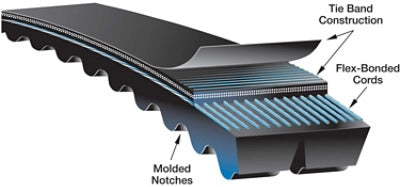

The 9/5VX1700 is a factory-joined 9-band 5VX banded belt assembly measuring 5.865" wide x 170.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226065

$665.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/5VX1700
Top Width	5.865 in / 148.97 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	169.0 in / 4292.6 mm
Outside Length	170.6 in / 4333.2 mm
Effective Length	170.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	9
Cogged	Yes
