9/5VX1250

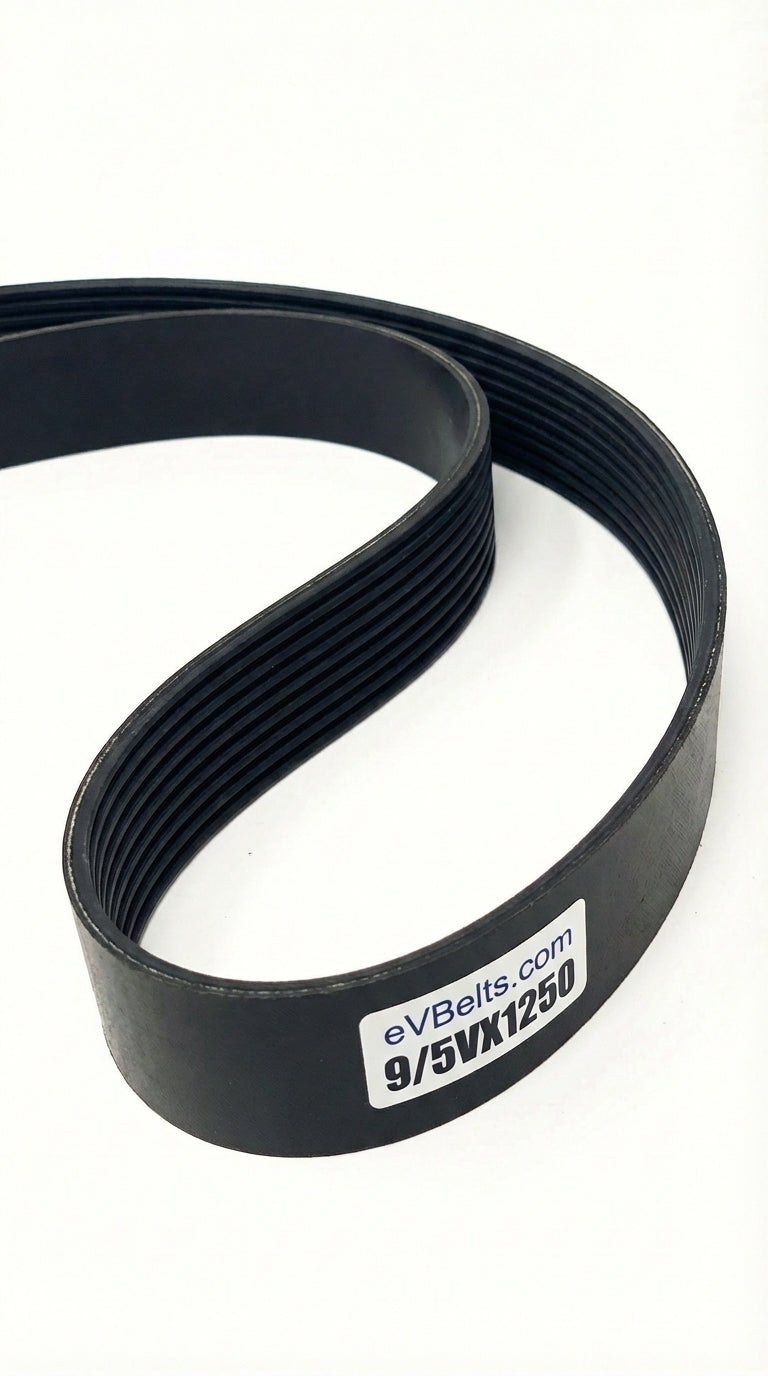

The 9/5VX1250 is a factory-joined 9-band 5VX banded belt assembly measuring 5.865" wide x 125.6" long, offering improved flexibility around smaller pulleys.
SKU: 1226060
$489.86
48986
0 In Stock
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 9/5VX1250 |
| Top Width | 5.865 in / 148.97 mm |
| Belt Depth | 0.5313 in / 13.5 mm |
| Inside Length | 124.0 in / 3149.6 mm |
| Outside Length | 125.6 in / 3190.2 mm |
| Effective Length | 125.0 in |
| Min Sheave Diameter | 4.4 in / 111.8 mm |
| Ribs | 9 |
| Cogged | Yes |
9/5VX1250
$489.86
48986
$489.86
48986
