8/5VX750

Top Width: 5.21" (132.33mm)
Outside Length: 75.6" (1920.2mm)
Inside Length: 74" (1879.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 8-Band Set

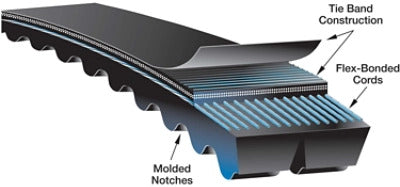

The 8/5VX750 is a factory-joined 8-band 5VX banded belt assembly measuring 5.21" wide x 75.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226025

$256.47

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/5VX750
Top Width	5.21 in / 132.33 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	74.0 in / 1879.6 mm
Outside Length	75.6 in / 1920.2 mm
Effective Length	75.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	8
Cogged	Yes
