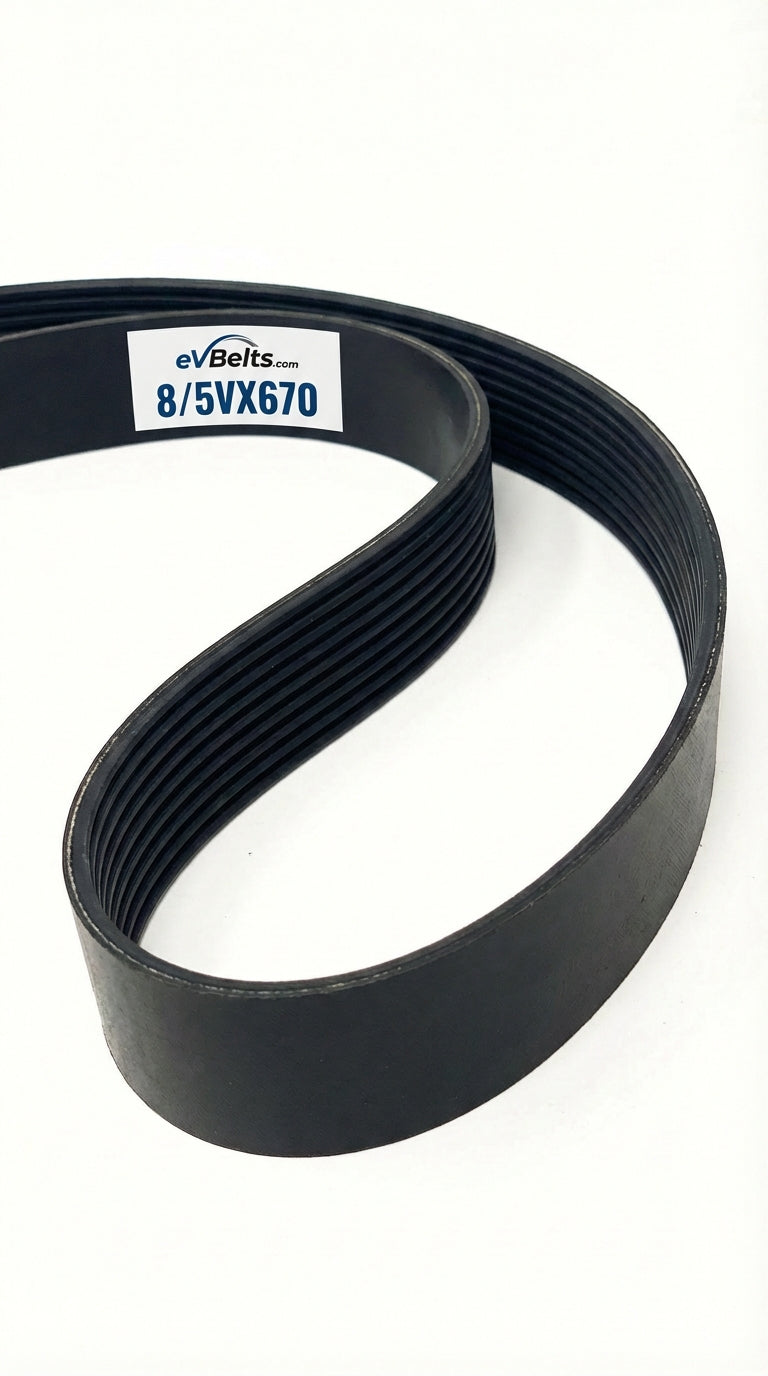

8/5VX670

Top Width: 5.21" (132.33mm)
Outside Length: 67.6" (1717mm)
Inside Length: 66" (1676.4mm)
Min Pulley Diameter: 4.4"

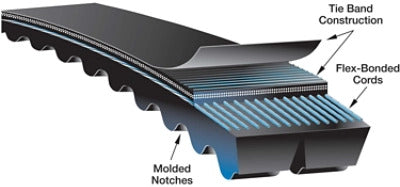

Profile: Cogged/Notched
Configuration: 8-Band Set

The 8/5VX670 is a factory-joined 8-band 5VX banded belt assembly measuring 5.21" wide x 67.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226024

$190.20

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/5VX670
Top Width	5.21 in / 132.33 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	66.0 in / 1676.4 mm
Outside Length	67.6 in / 1717.0 mm
Effective Length	67.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	8
Cogged	Yes
