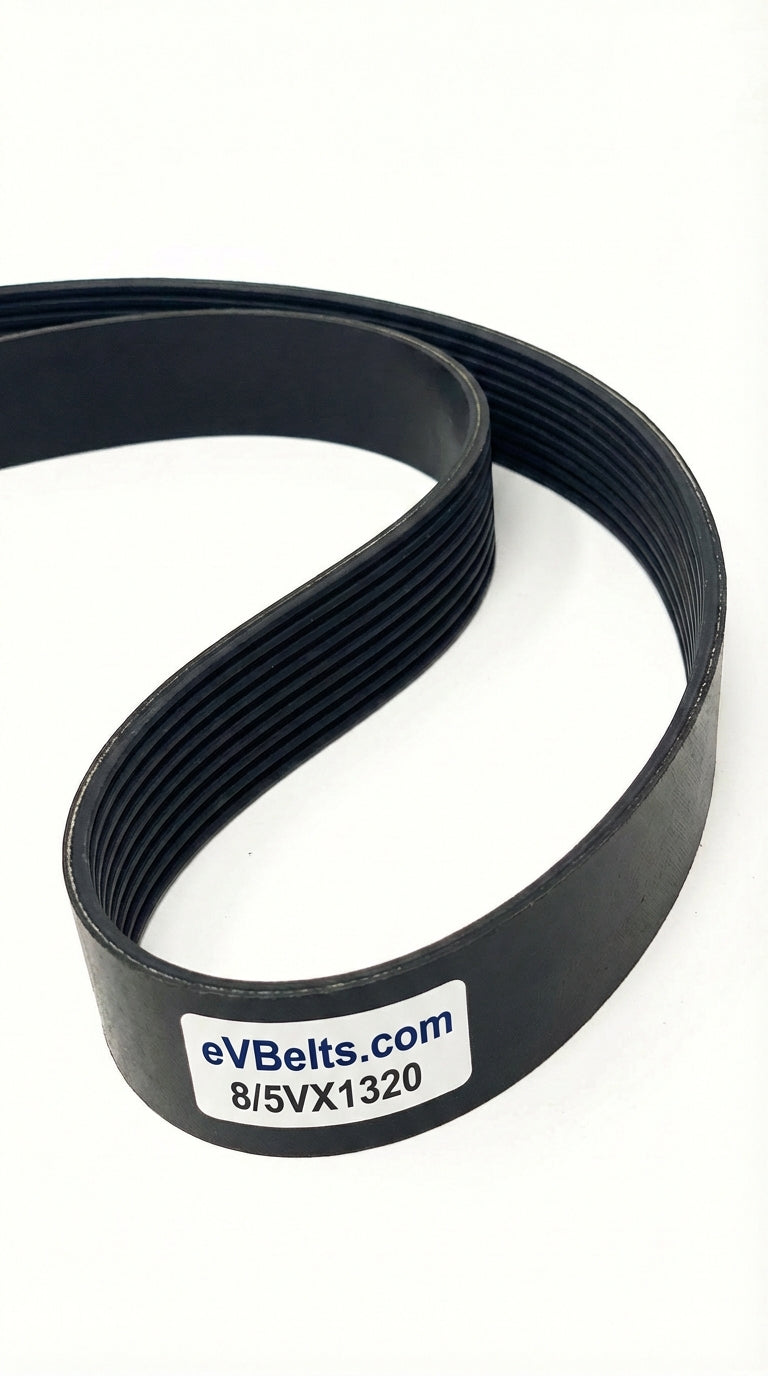

8/5VX1320

Top Width: 5.21" (132.33mm)
Outside Length: 132.6" (3368mm)
Inside Length: 131" (3327.4mm)
Min Pulley Diameter: 4.4"

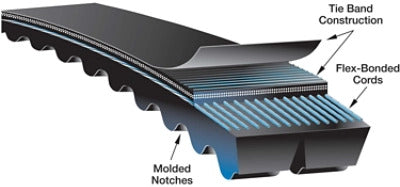

Profile: Cogged/Notched
Configuration: 8-Band Set

The 8/5VX1320 is a factory-joined 8-band 5VX banded belt assembly measuring 5.21" wide x 132.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226035

$340.19

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/5VX1320
Top Width	5.21 in / 132.33 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	131.0 in / 3327.4 mm
Outside Length	132.6 in / 3368.0 mm
Effective Length	132.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	8
Cogged	Yes
