7/5VX1900

Top Width: 4.555" (115.7mm)
Outside Length: 190.6" (4841.2mm)
Inside Length: 189" (4800.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 7-Band Set

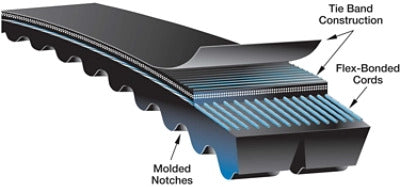

The 7/5VX1900 is a factory-joined 7-band 5VX banded belt assembly measuring 4.555" wide x 190.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226018

$431.04

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	7/5VX1900
Top Width	4.555 in / 115.7 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	189.0 in / 4800.6 mm
Outside Length	190.6 in / 4841.2 mm
Effective Length	190.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	7
Cogged	Yes
