7/5VX1180

Top Width: 4.555" (115.7mm)
Outside Length: 118.6" (3012.4mm)
Inside Length: 117" (2971.8mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 7-Band Set

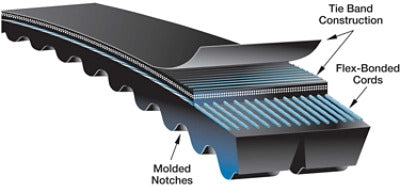

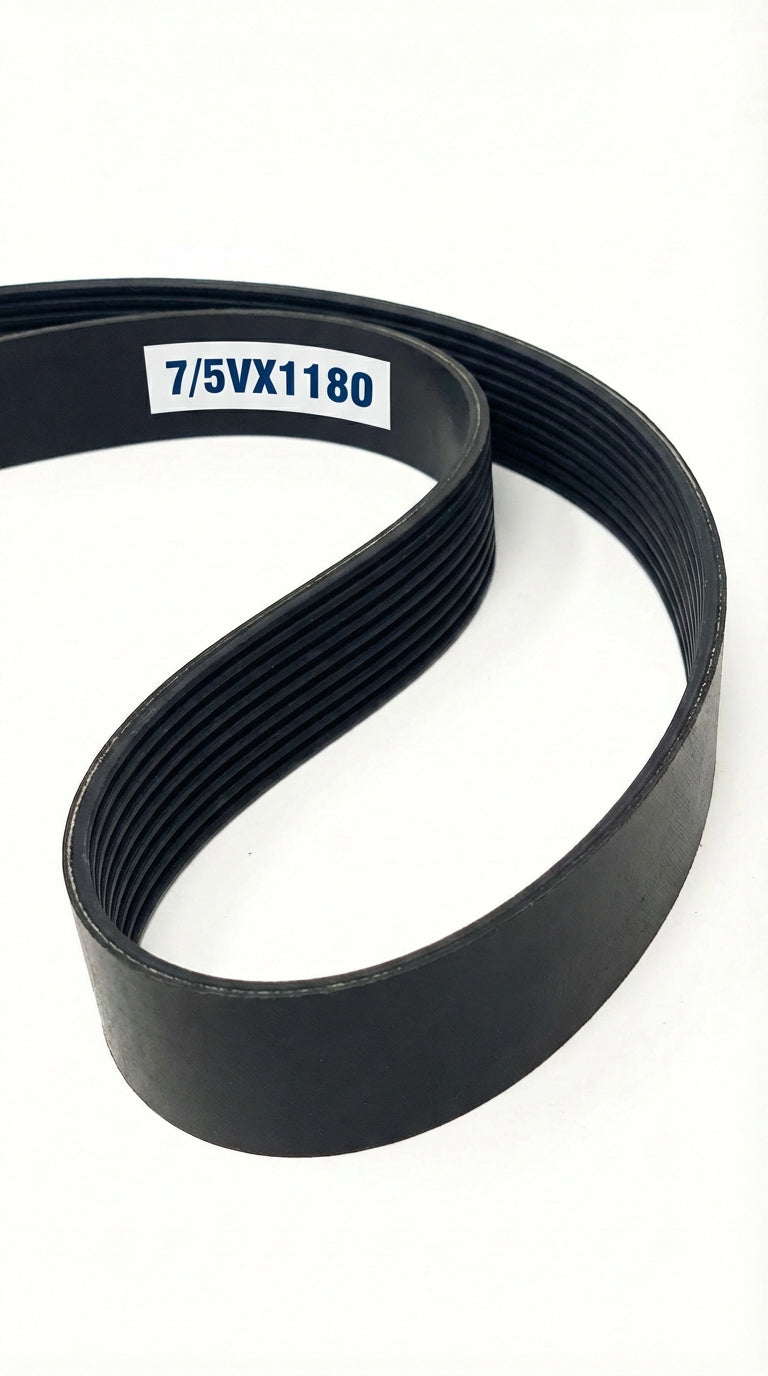

The 7/5VX1180 is a factory-joined 7-band 5VX banded belt assembly measuring 4.555" wide x 118.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226010

$265.71

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	7/5VX1180
Top Width	4.555 in / 115.7 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	117.0 in / 2971.8 mm
Outside Length	118.6 in / 3012.4 mm
Effective Length	118.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	7
Cogged	Yes
