7/5VX1060

Top Width: 4.555" (115.7mm)
Outside Length: 106.6" (2707.6mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 7-Band Set

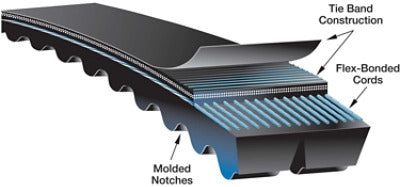

The 7/5VX1060 is a factory-joined 7-band 5VX banded belt assembly measuring 4.555" wide x 106.6" long, offering improved flexibility around smaller pulleys.

SKU: 1226007

$321.85

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	7/5VX1060
Top Width	4.555 in / 115.7 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	106.6 in / 2707.6 mm
Effective Length	106.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	7
Cogged	Yes
