6/5VX950

Top Width: 3.9" (99.06mm)
Outside Length: 95.6" (2428.2mm)
Inside Length: 94" (2387.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 6-Band Set

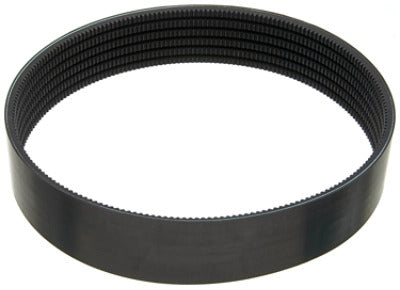

The 6/5VX950 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 95.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225980

$182.40

Only 7 Left!

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	6/5VX950
Top Width	3.9 in / 99.06 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	94.0 in / 2387.6 mm
Outside Length	95.6 in / 2428.2 mm
Effective Length	95.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	6
Cogged	Yes
