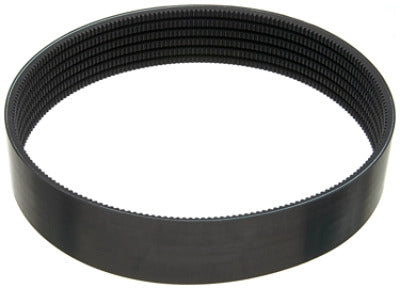

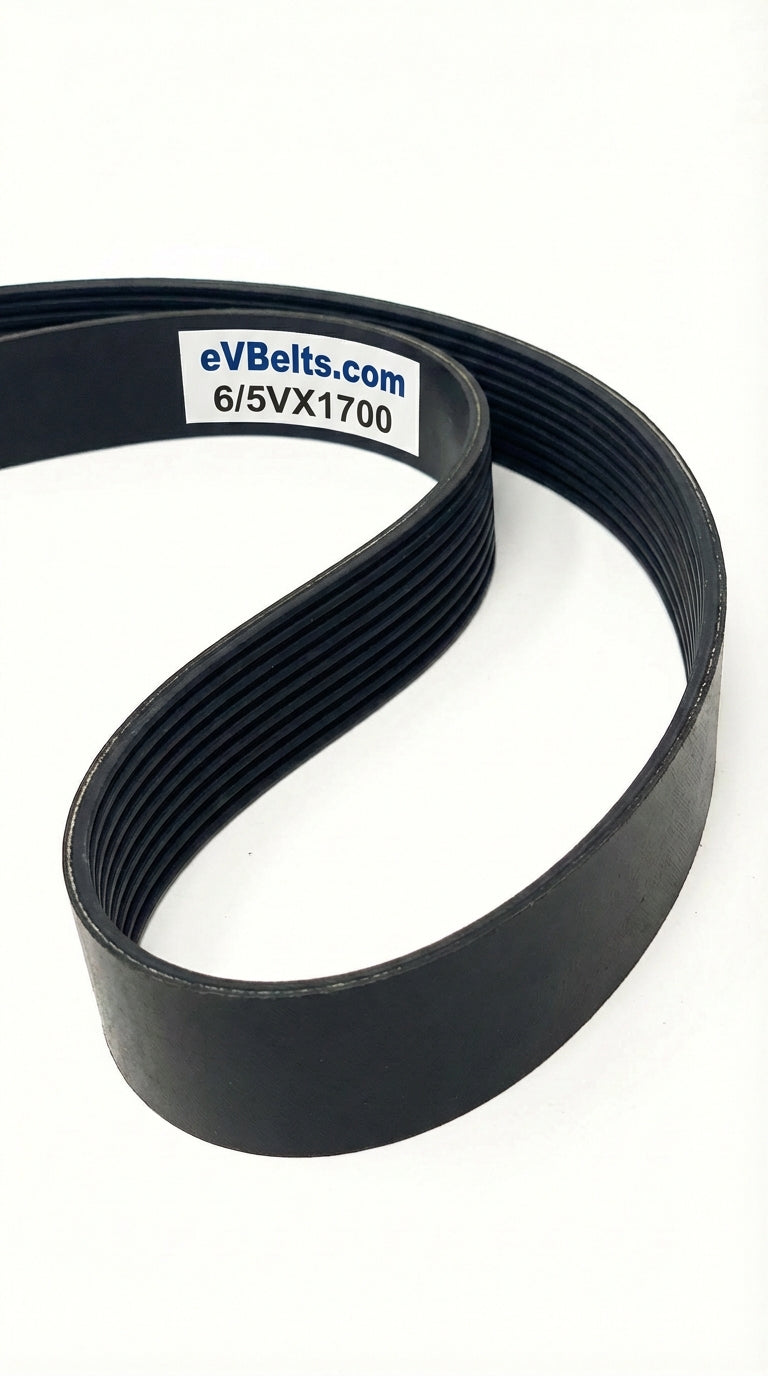

6/5VX1700

Top Width: 3.9" (99.06mm)
Outside Length: 170.6" (4333.2mm)
Inside Length: 169" (4292.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 6-Band Set

The 6/5VX1700 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 170.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225990

$328.72

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	6/5VX1700
Top Width	3.9 in / 99.06 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	169.0 in / 4292.6 mm
Outside Length	170.6 in / 4333.2 mm
Effective Length	170.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	6
Cogged	Yes
