6/5VX1400

Top Width: 3.9" (99.06mm)
Outside Length: 140.6" (3571.2mm)
Inside Length: 139" (3530.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 6-Band Set

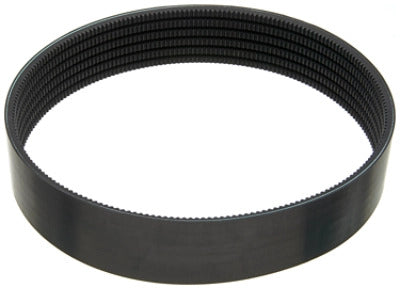

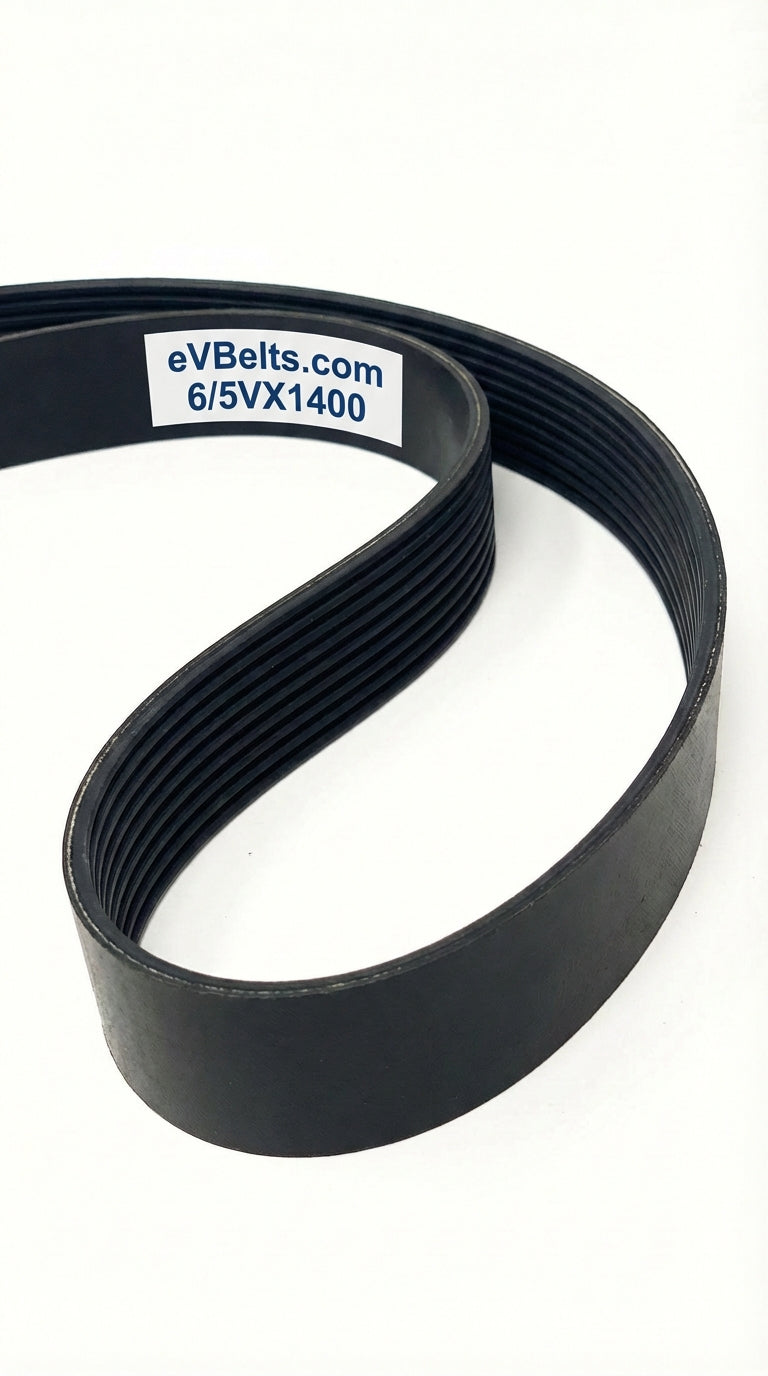

The 6/5VX1400 is a factory-joined 6-band 5VX banded belt assembly measuring 3.9" wide x 140.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225987

$269.21

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	6/5VX1400
Top Width	3.9 in / 99.06 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	139.0 in / 3530.6 mm
Outside Length	140.6 in / 3571.2 mm
Effective Length	140.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	6
Cogged	Yes
