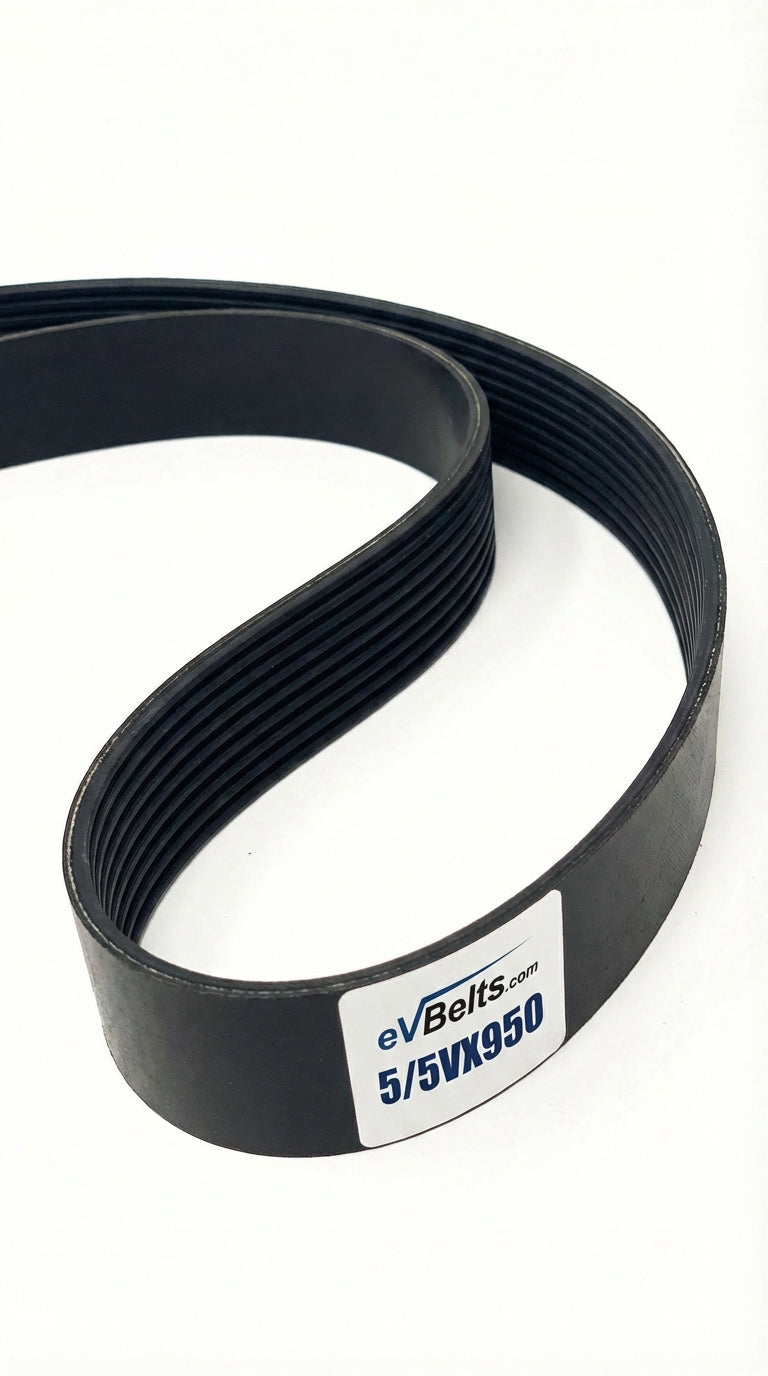

5/5VX950

Top Width: 3.245" (82.42mm)
Outside Length: 95.6" (2428.2mm)
Inside Length: 94" (2387.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 5-Band Set

The 5/5VX950 is a factory-joined 5-band 5VX banded belt assembly measuring 3.245" wide x 95.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225955

$130.94

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/5VX950
Top Width	3.245 in / 82.42 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	94.0 in / 2387.6 mm
Outside Length	95.6 in / 2428.2 mm
Effective Length	95.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	5
Cogged	Yes
