4/5VX750

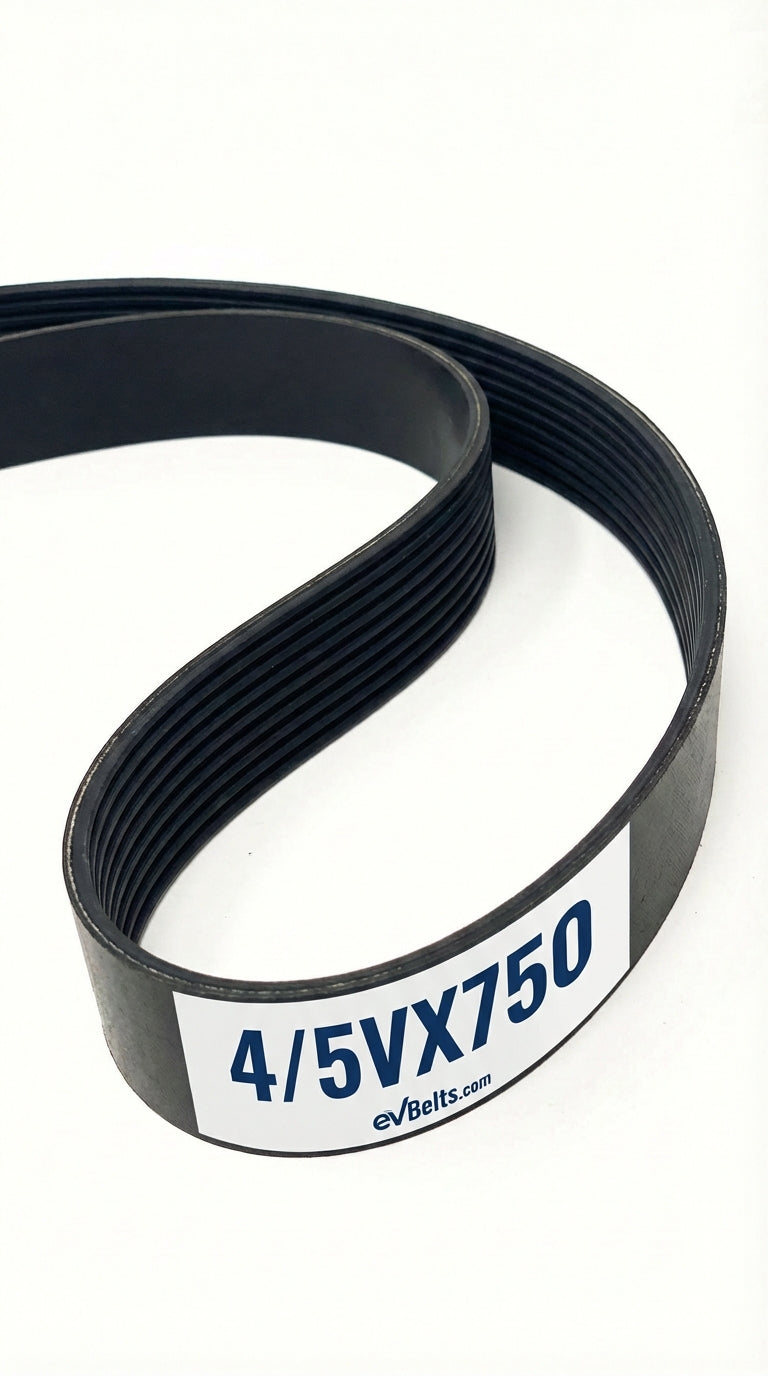

The 4/5VX750 is a factory-joined 4-band 5VX banded belt assembly measuring 2.59" wide x 75.6" long, offering improved flexibility around smaller pulleys.
SKU: 1225927
$87.12
8712
Only 9 Left!
Estimated delivery between June 22 and June 24.
Technical Specifications
| Part Number | 4/5VX750 |
| Top Width | 2.59 in / 65.79 mm |
| Belt Depth | 0.5313 in / 13.5 mm |
| Inside Length | 74.0 in / 1879.6 mm |
| Outside Length | 75.6 in / 1920.2 mm |
| Effective Length | 75.0 in |
| Min Sheave Diameter | 4.4 in / 111.8 mm |
| Ribs | 4 |
| Cogged | Yes |
4/5VX750
$87.12
8712
$87.12
8712
