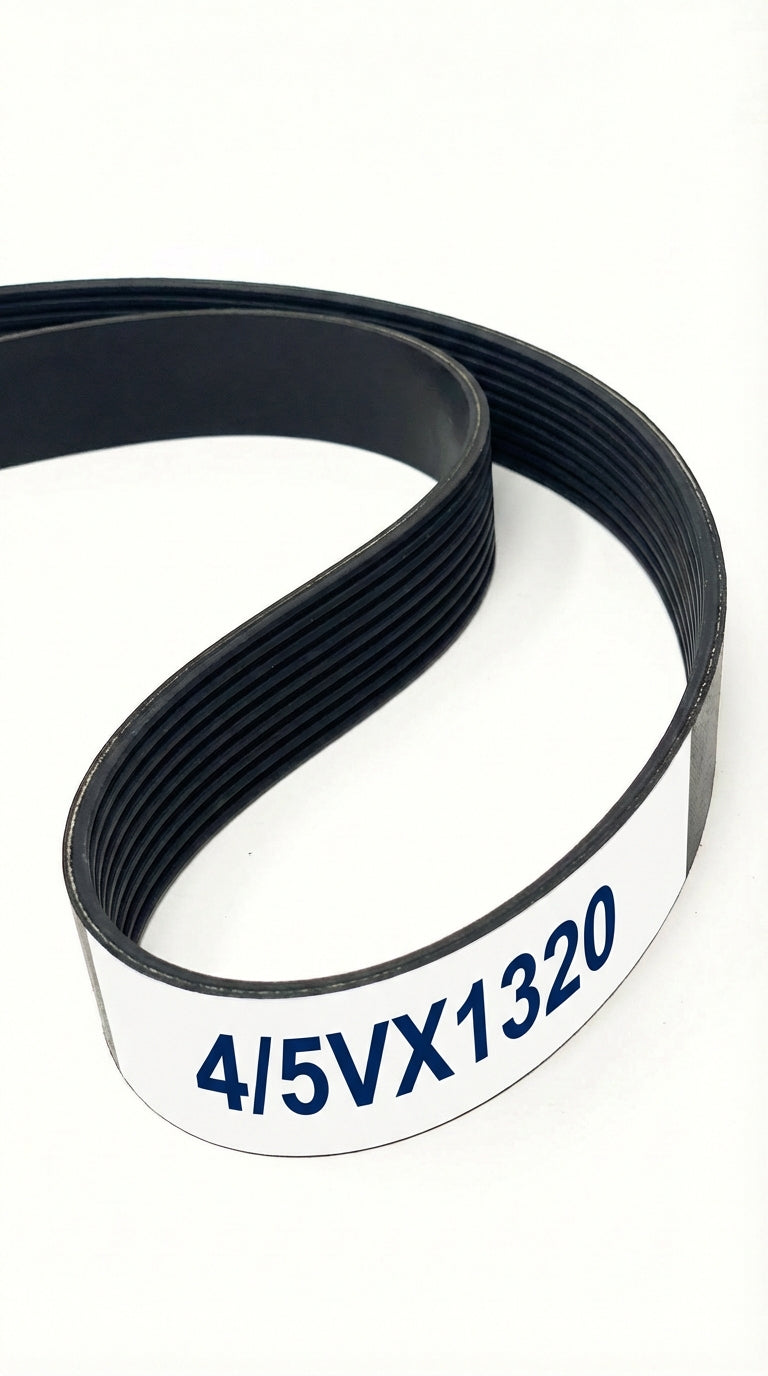

4/5VX1320

Top Width: 2.59" (65.79mm)
Outside Length: 132.6" (3368mm)
Inside Length: 131" (3327.4mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/5VX1320 is a factory-joined 4-band 5VX banded belt assembly measuring 2.59" wide x 132.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225936

$152.10

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	4/5VX1320
Top Width	2.59 in / 65.79 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	131.0 in / 3327.4 mm
Outside Length	132.6 in / 3368.0 mm
Effective Length	132.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	4
Cogged	Yes
