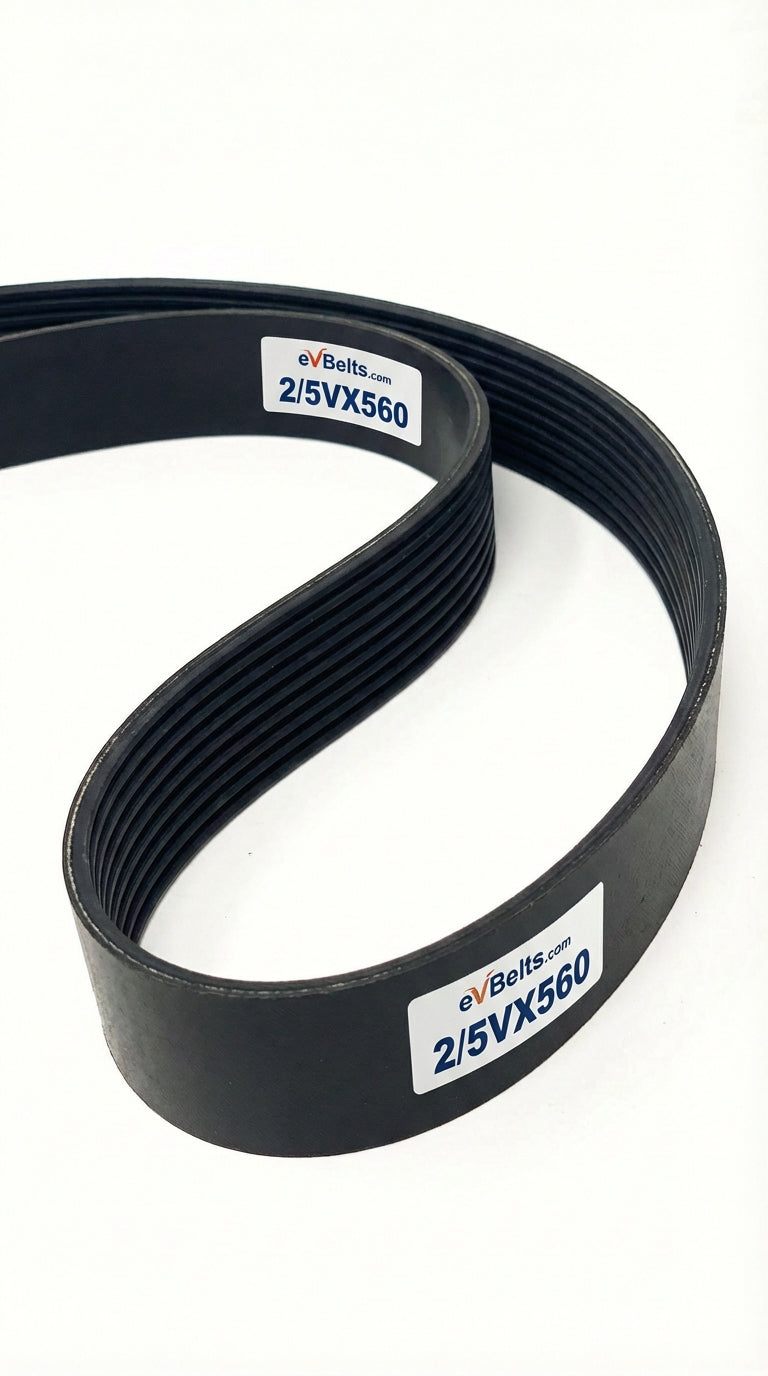

2/5VX560

Top Width: 1.28" (32.51mm)
Outside Length: 56.6" (1437.6mm)
Inside Length: 55" (1397mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 2-Band Set

The 2/5VX560 is a factory-joined 2-band 5VX banded belt assembly measuring 1.28" wide x 56.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225870

$37.46

18 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/5VX560
Top Width	1.28 in / 32.51 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	55.0 in / 1397.0 mm
Outside Length	56.6 in / 1437.6 mm
Effective Length	56.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	2
Cogged	Yes
