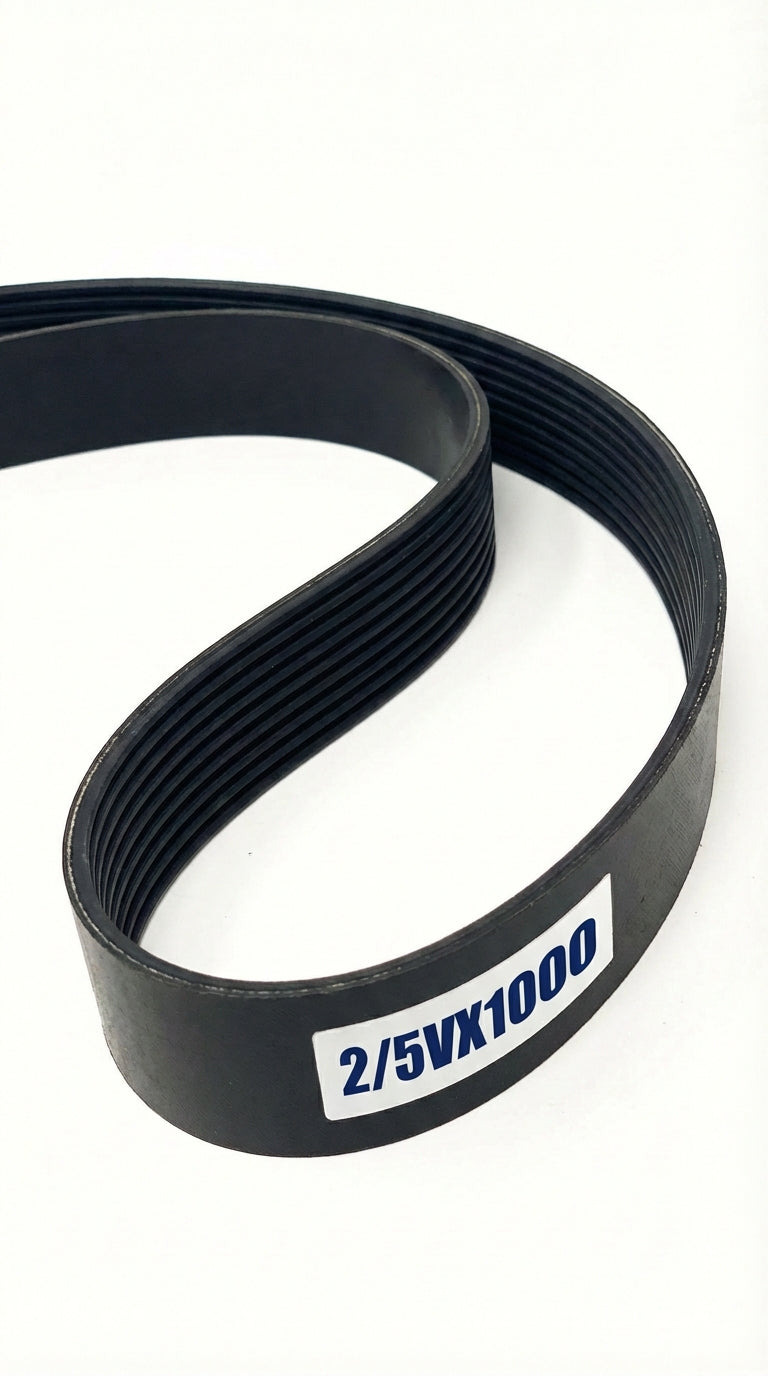

2/5VX1000

Top Width: 1.28" (32.51mm)
Outside Length: 100.6" (2555.2mm)
Inside Length: 99" (2514.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 2-Band Set

The 2/5VX1000 is a factory-joined 2-band 5VX banded belt assembly measuring 1.28" wide x 100.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225881

$52.98

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/5VX1000
Top Width	1.28 in / 32.51 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	99.0 in / 2514.6 mm
Outside Length	100.6 in / 2555.2 mm
Effective Length	100.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	2
Cogged	Yes
