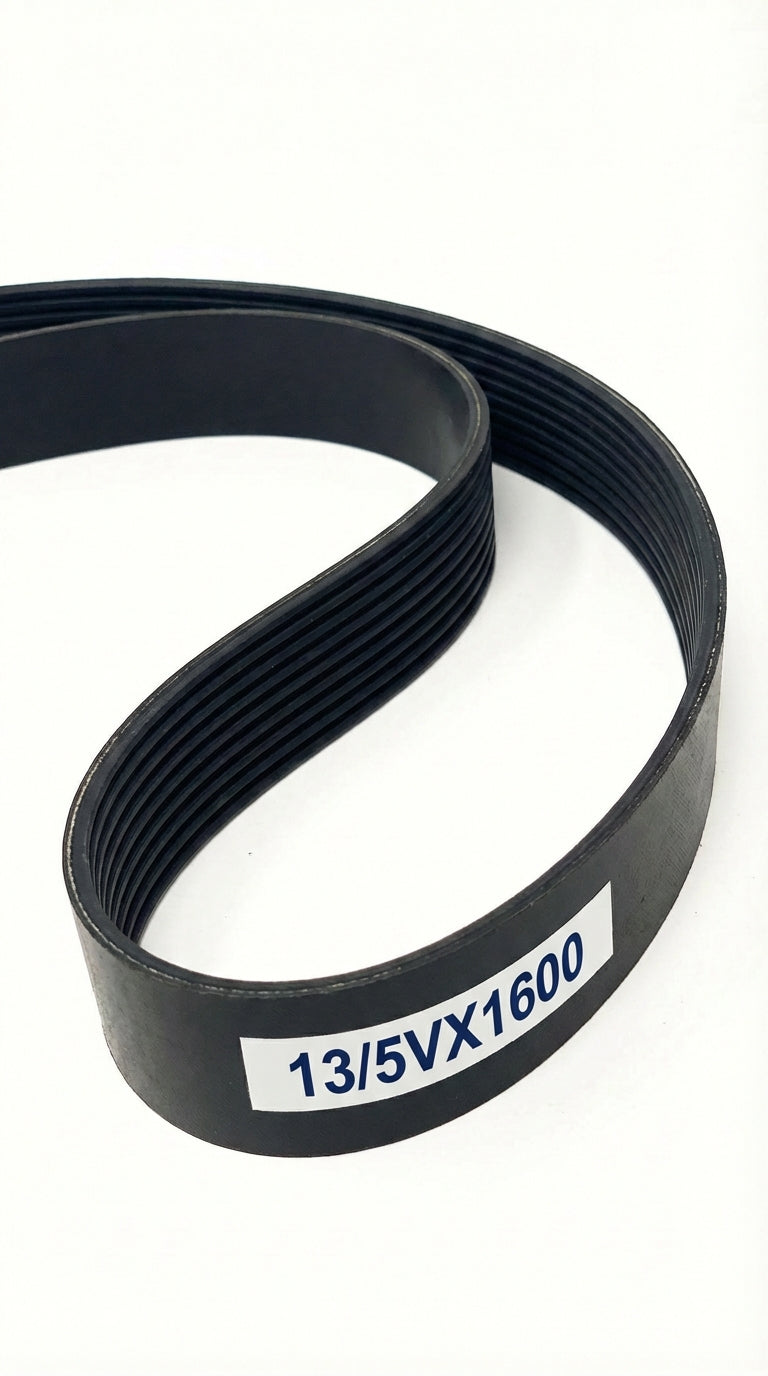

13/5VX1600

Top Width: 8.485" (215.52mm)
Outside Length: 160.6" (4079.2mm)
Inside Length: 159" (4038.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 13-Band Set

The 13/5VX1600 is a factory-joined 13-band 5VX banded belt assembly measuring 8.485" wide x 160.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225864

$932.18

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	13/5VX1600
Top Width	8.485 in / 215.52 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	159.0 in / 4038.6 mm
Outside Length	160.6 in / 4079.2 mm
Effective Length	160.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	13
Cogged	Yes
