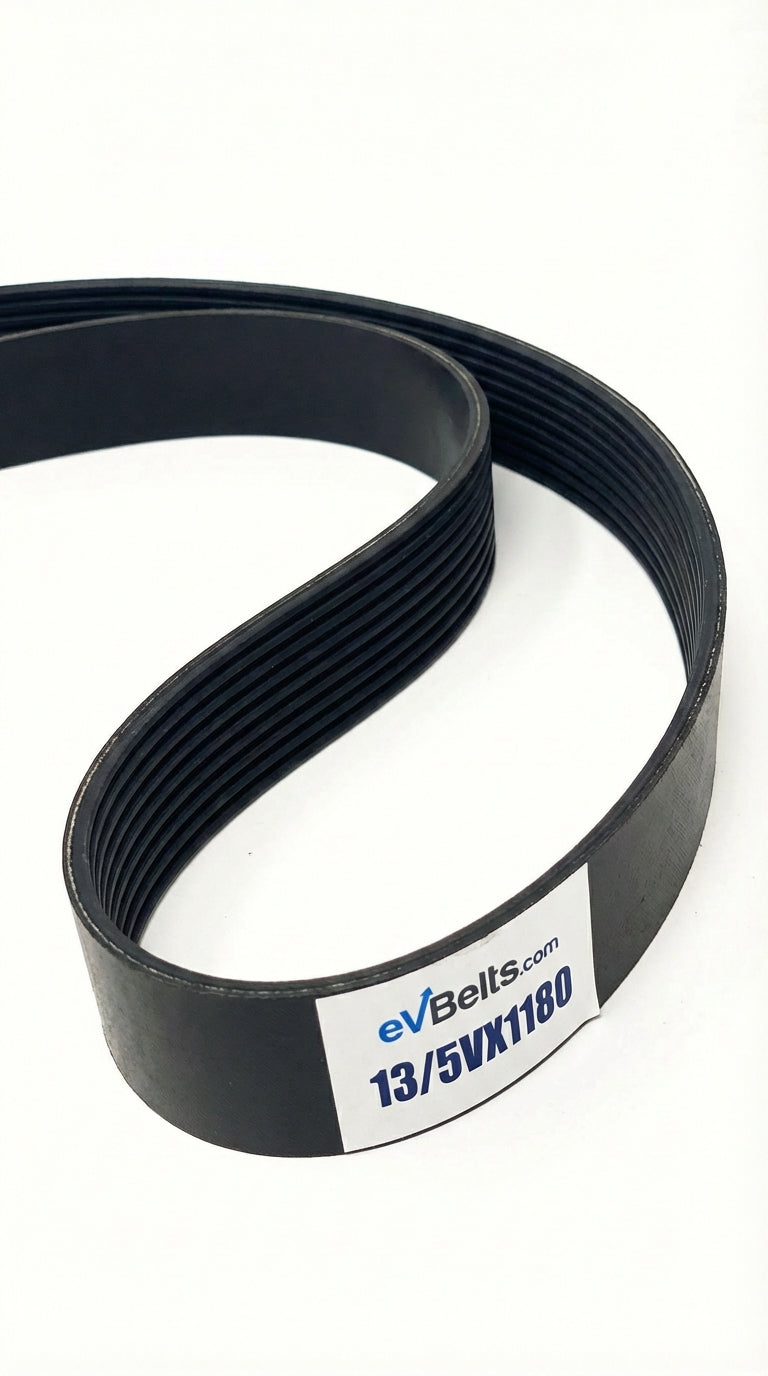

13/5VX1180

Top Width: 8.485" (215.52mm)
Outside Length: 118.6" (3012.4mm)
Inside Length: 117" (2971.8mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 13-Band Set

The 13/5VX1180 is a factory-joined 13-band 5VX banded belt assembly measuring 8.485" wide x 118.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225859

$686.74

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	13/5VX1180
Top Width	8.485 in / 215.52 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	117.0 in / 2971.8 mm
Outside Length	118.6 in / 3012.4 mm
Effective Length	118.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	13
Cogged	Yes
