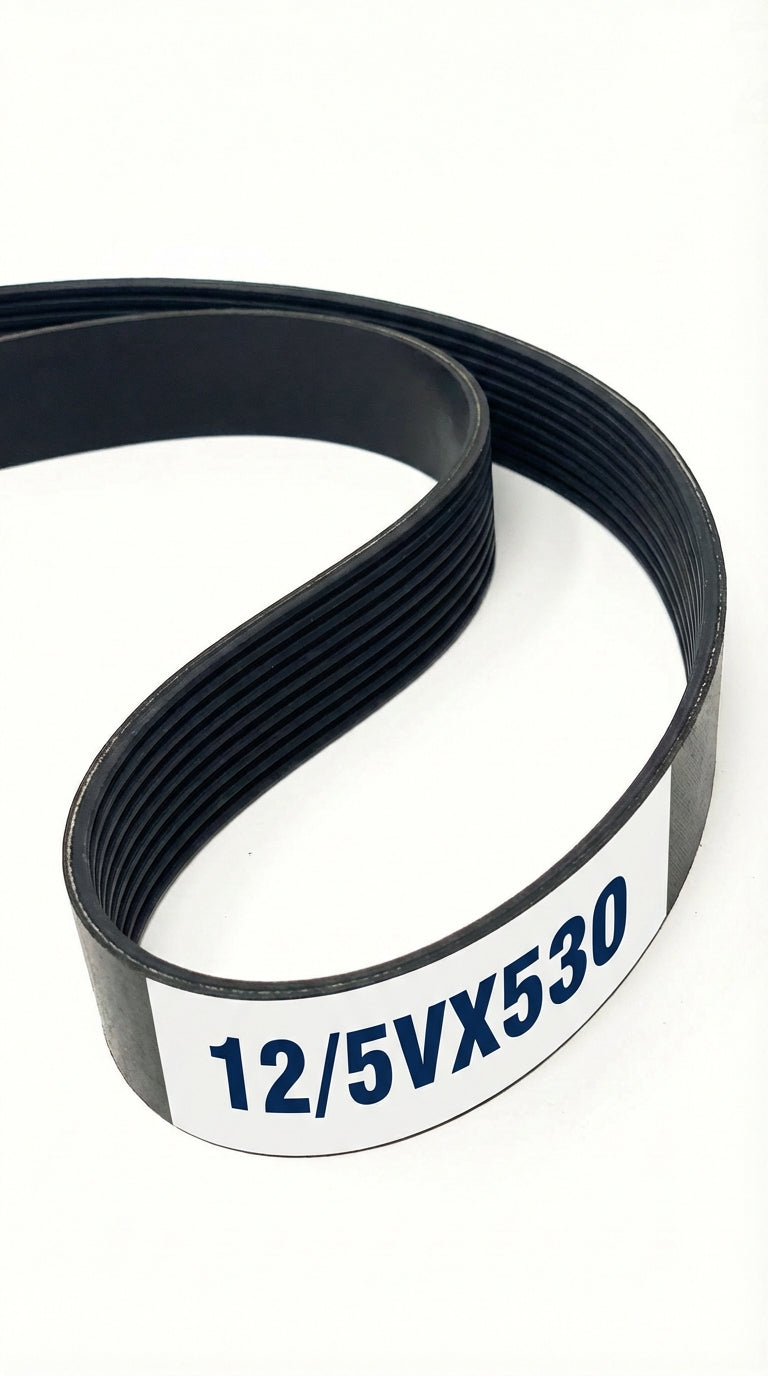

12/5VX530

Top Width: 7.83" (198.88mm)
Outside Length: 53.6" (1361.4mm)
Inside Length: 52" (1320.8mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 12-Band Set

The 12/5VX530 is a factory-joined 12-band 5VX banded belt assembly measuring 7.83" wide x 53.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225820

$270.63

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	12/5VX530
Top Width	7.83 in / 198.88 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	52.0 in / 1320.8 mm
Outside Length	53.6 in / 1361.4 mm
Effective Length	53.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	12
Cogged	Yes
