12/5VX1180

Top Width: 7.83" (198.88mm)
Outside Length: 118.6" (3012.4mm)
Inside Length: 117" (2971.8mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 12-Band Set

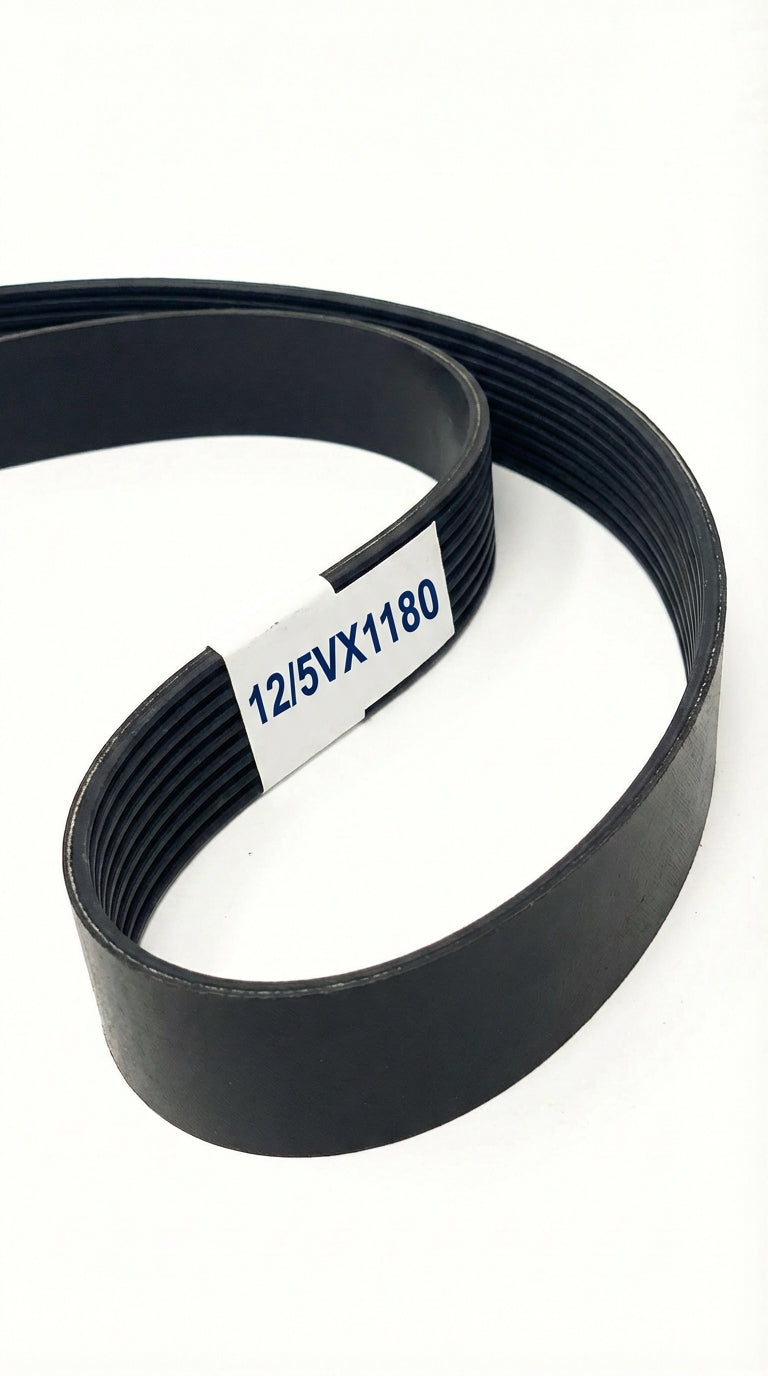

The 12/5VX1180 is a factory-joined 12-band 5VX banded belt assembly measuring 7.83" wide x 118.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225835

$534.63

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/5VX1180
Top Width	7.83 in / 198.88 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	117.0 in / 2971.8 mm
Outside Length	118.6 in / 3012.4 mm
Effective Length	118.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	12
Cogged	Yes
