11/5VX800

Top Width: 7.175" (182.24mm)
Outside Length: 80.6" (2047.2mm)
Inside Length: 79" (2006.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 11-Band Set

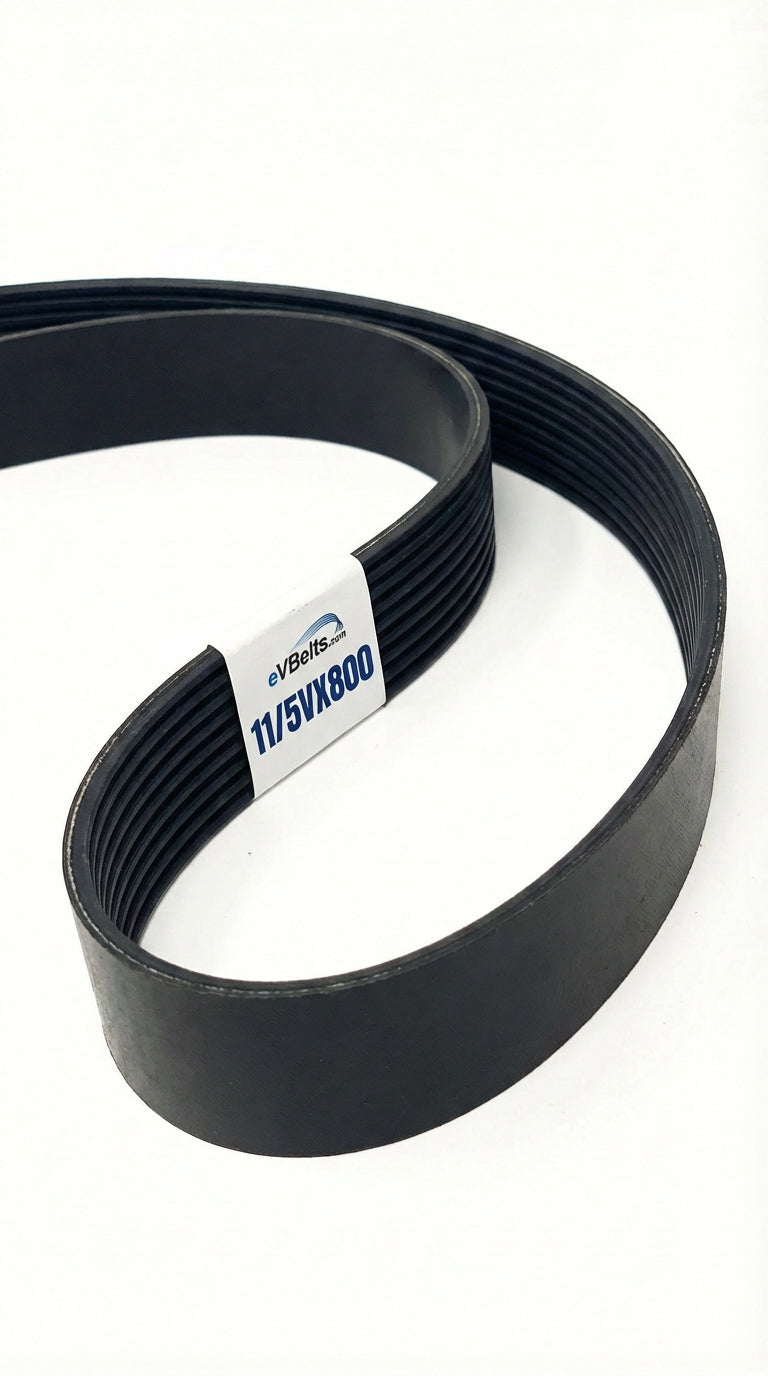

The 11/5VX800 is a factory-joined 11-band 5VX banded belt assembly measuring 7.175" wide x 80.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225802

$375.97

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/5VX800
Top Width	7.175 in / 182.24 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	79.0 in / 2006.6 mm
Outside Length	80.6 in / 2047.2 mm
Effective Length	80.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	11
Cogged	Yes
