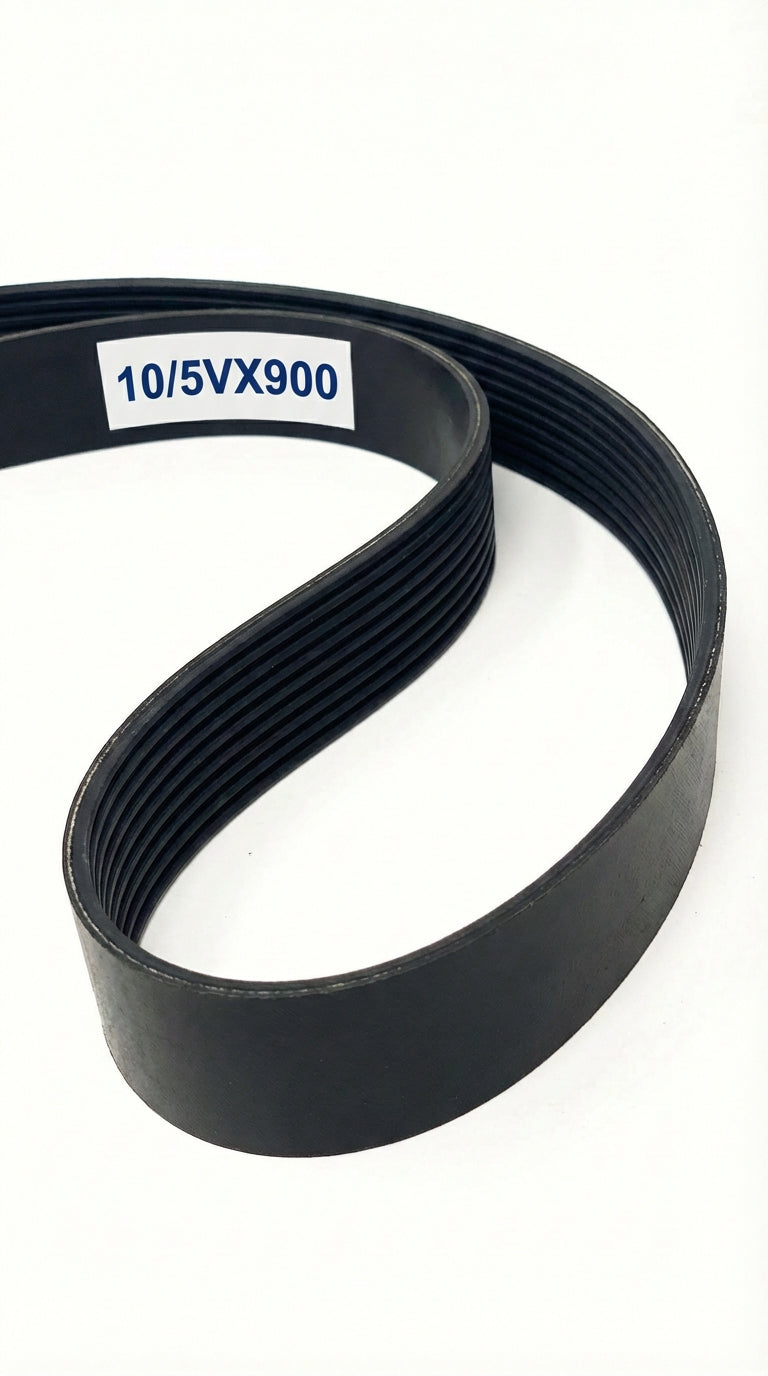

10/5VX900

Top Width: 6.52" (165.61mm)
Outside Length: 90.6" (2301.2mm)
Inside Length: 89" (2260.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 10-Band Set

The 10/5VX900 is a factory-joined 10-band 5VX banded belt assembly measuring 6.52" wide x 90.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225778

$382.23

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/5VX900
Top Width	6.52 in / 165.61 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	89.0 in / 2260.6 mm
Outside Length	90.6 in / 2301.2 mm
Effective Length	90.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	10
Cogged	Yes
