10/5VX800

Top Width: 6.52" (165.61mm)
Outside Length: 80.6" (2047.2mm)
Inside Length: 79" (2006.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 10-Band Set

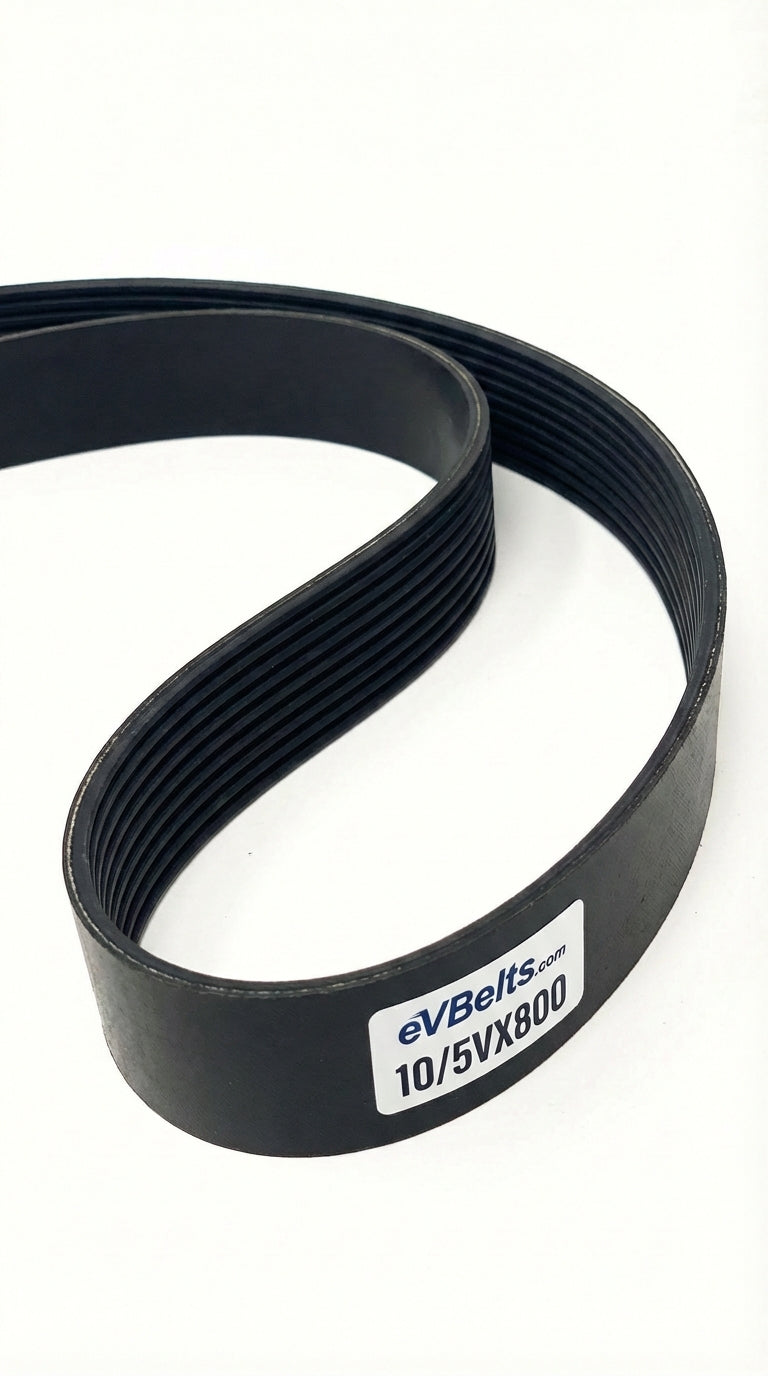

The 10/5VX800 is a factory-joined 10-band 5VX banded belt assembly measuring 6.52" wide x 80.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225776

$341.80

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/5VX800
Top Width	6.52 in / 165.61 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	79.0 in / 2006.6 mm
Outside Length	80.6 in / 2047.2 mm
Effective Length	80.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	10
Cogged	Yes
