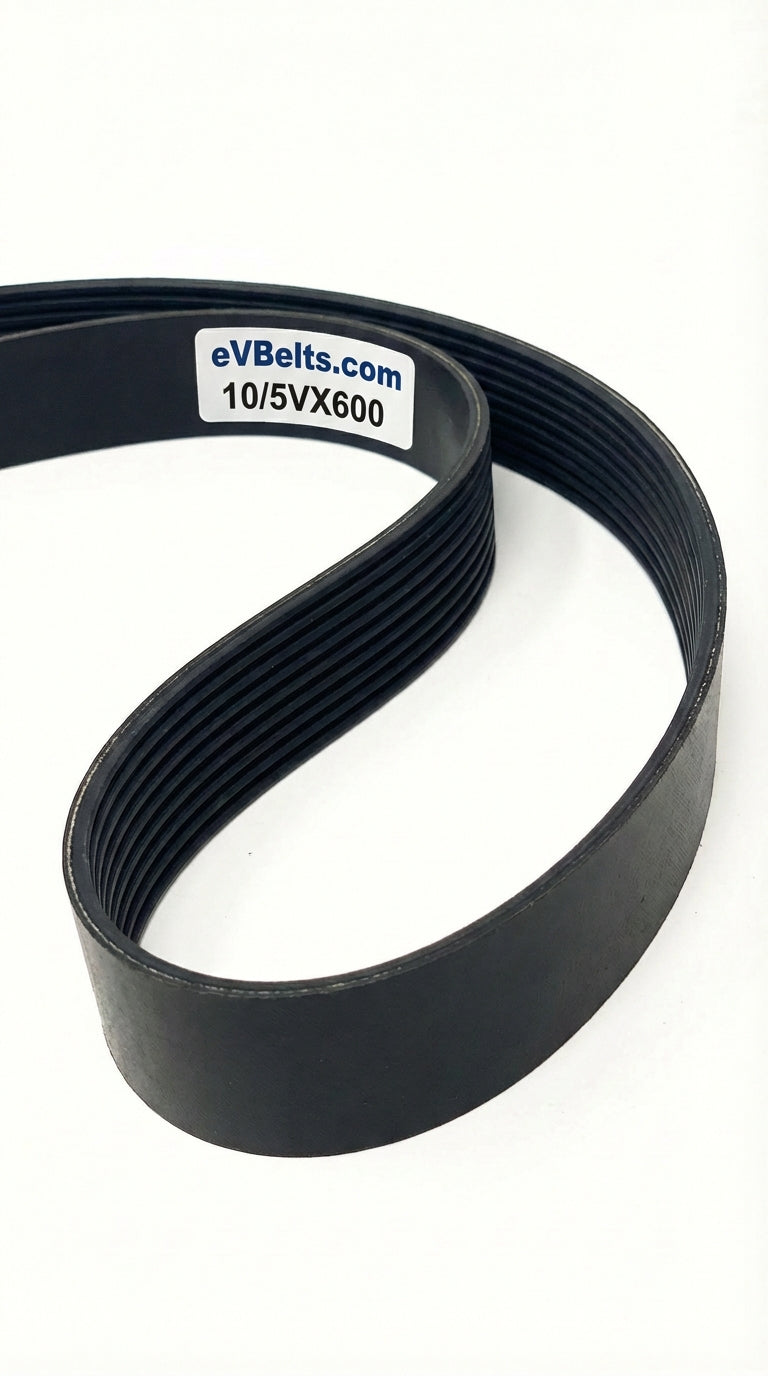

10/5VX600

Top Width: 6.52" (165.61mm)
Outside Length: 60.6" (1539.2mm)
Inside Length: 59" (1498.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 10-Band Set

The 10/5VX600 is a factory-joined 10-band 5VX banded belt assembly measuring 6.52" wide x 60.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225772

$255.41

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/5VX600
Top Width	6.52 in / 165.61 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	59.0 in / 1498.6 mm
Outside Length	60.6 in / 1539.2 mm
Effective Length	60.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	10
Cogged	Yes
