10/5VX1800

Top Width: 6.52" (165.61mm)
Outside Length: 180.6" (4587.2mm)
Inside Length: 179" (4546.6mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 10-Band Set

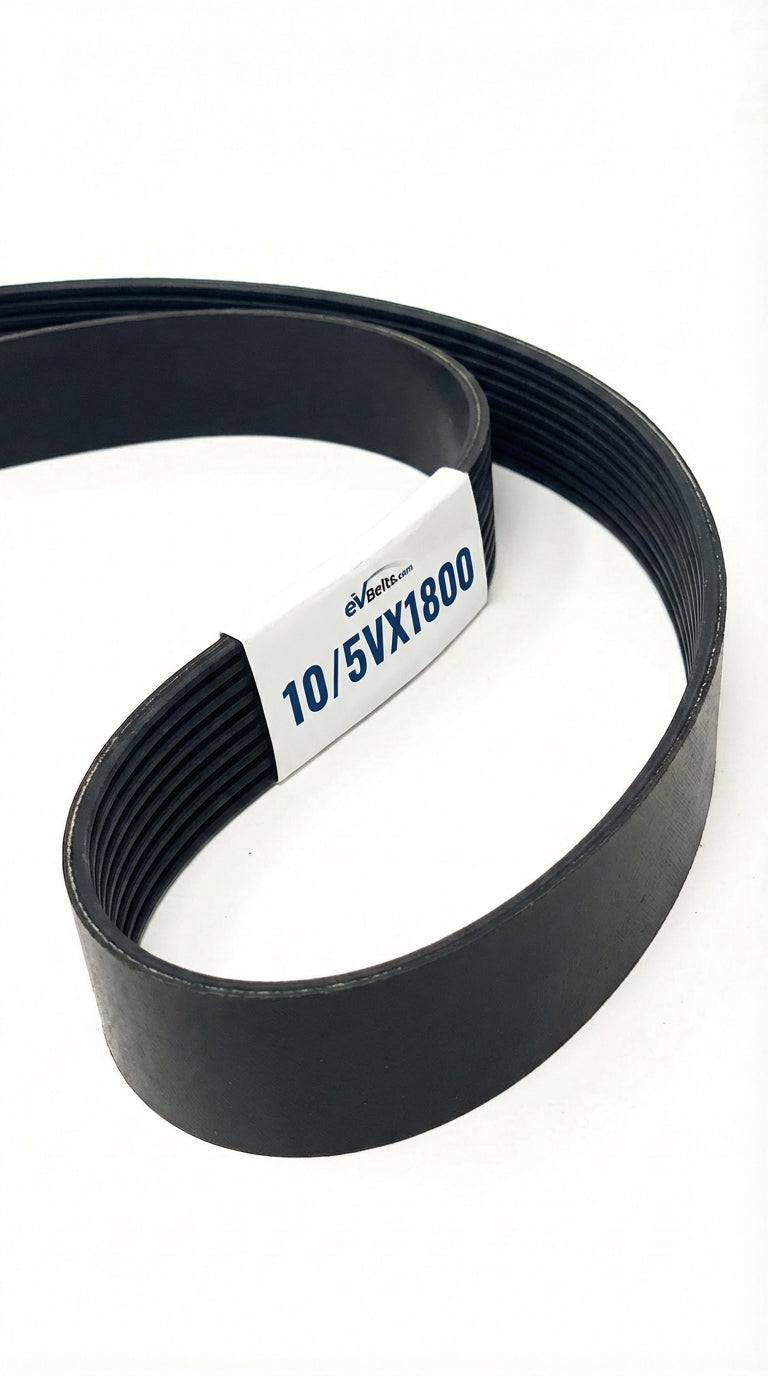

The 10/5VX1800 is a factory-joined 10-band 5VX banded belt assembly measuring 6.52" wide x 180.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225791

$785.63

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/5VX1800
Top Width	6.52 in / 165.61 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	179.0 in / 4546.6 mm
Outside Length	180.6 in / 4587.2 mm
Effective Length	180.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	10
Cogged	Yes
