10/5VX1060

Top Width: 6.52" (165.61mm)
Outside Length: 106.6" (2707.6mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 4.4"
Profile: Cogged/Notched
Configuration: 10-Band Set

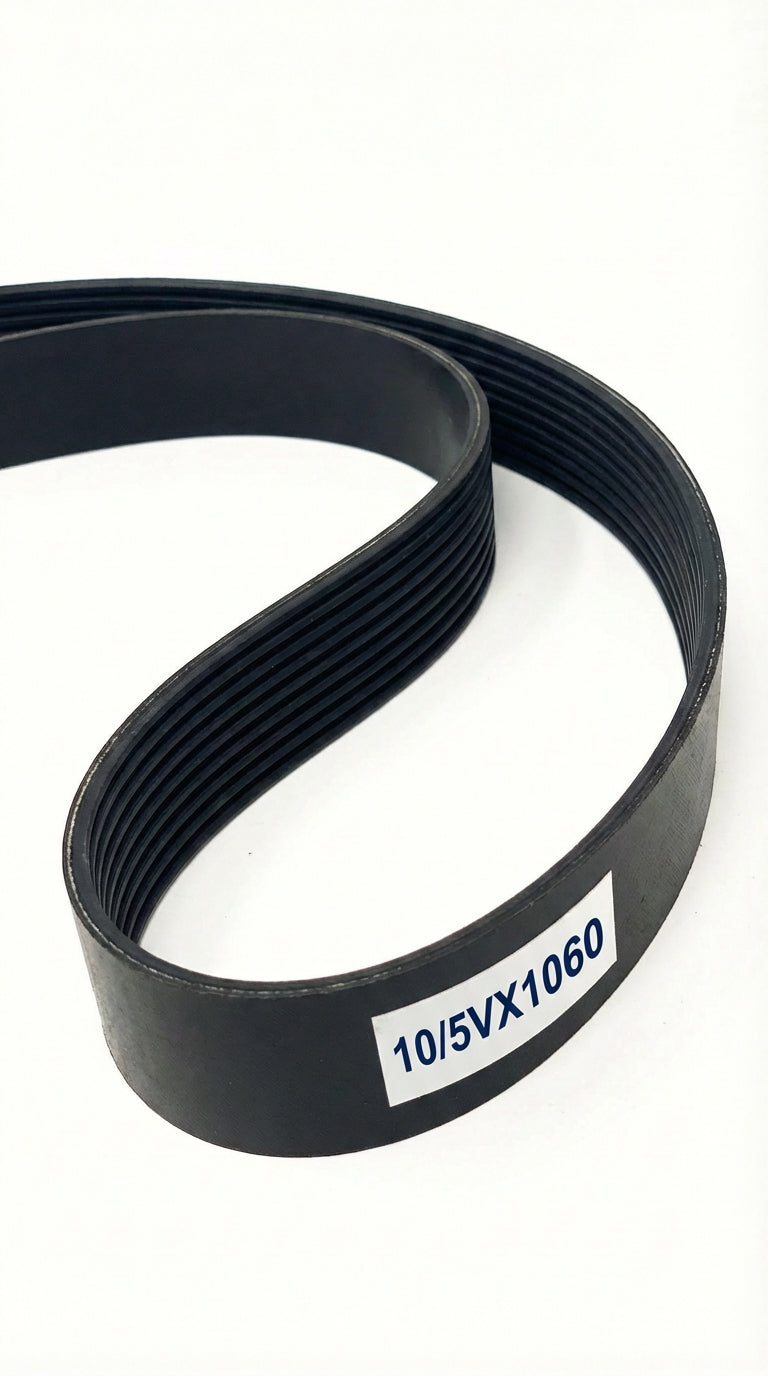

The 10/5VX1060 is a factory-joined 10-band 5VX banded belt assembly measuring 6.52" wide x 106.6" long, offering improved flexibility around smaller pulleys.

SKU: 1225782

$479.56

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/5VX1060
Top Width	6.52 in / 165.61 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	106.6 in / 2707.6 mm
Effective Length	106.0 in
Min Sheave Diameter	4.4 in / 111.8 mm
Ribs	10
Cogged	Yes
