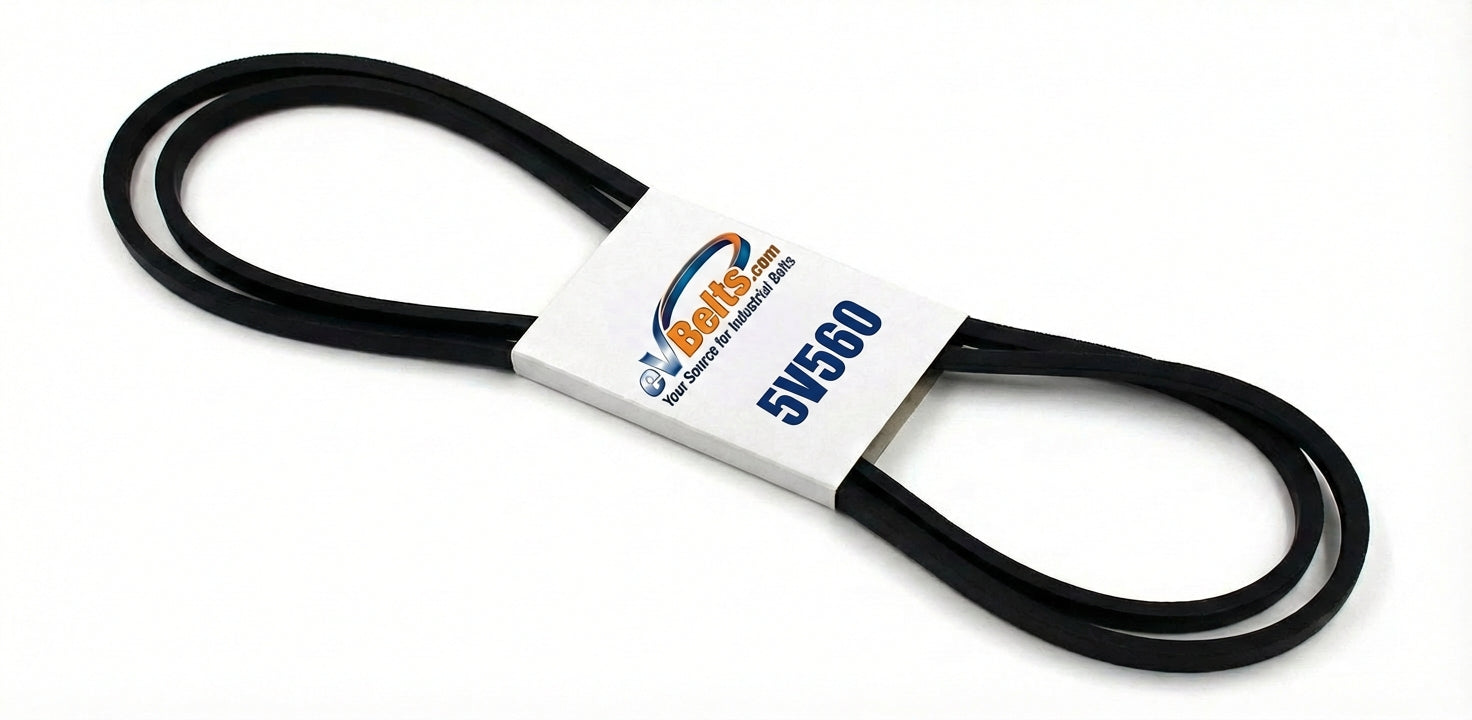

The 5V560 is a premium Narrow Wedge V-belt measuring 0.625" wide x 56.6" long, featuring oil and heat resistant rubber construction.

SKU: 1223175

$11.61

167 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications
Part Number 5V560
Top Width 0.625 in / 15.88 mm
Belt Depth 0.5313 in / 13.5 mm
Inside Length 55.0 in / 1397.0 mm
Outside Length 56.6 in / 1437.6 mm
Effective Length 56.0 in
Min Sheave Diameter 7.1 in / 180.3 mm
